Description

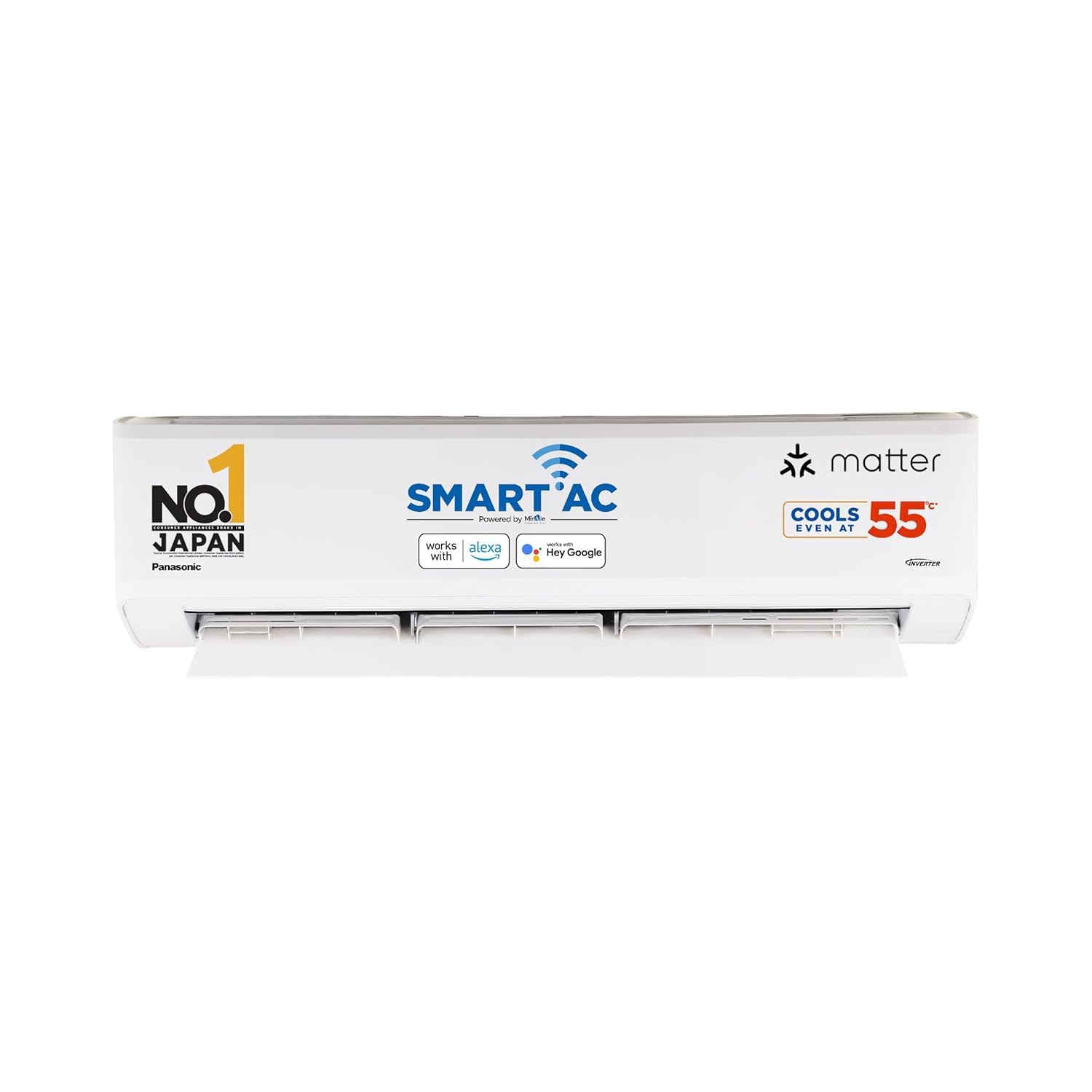

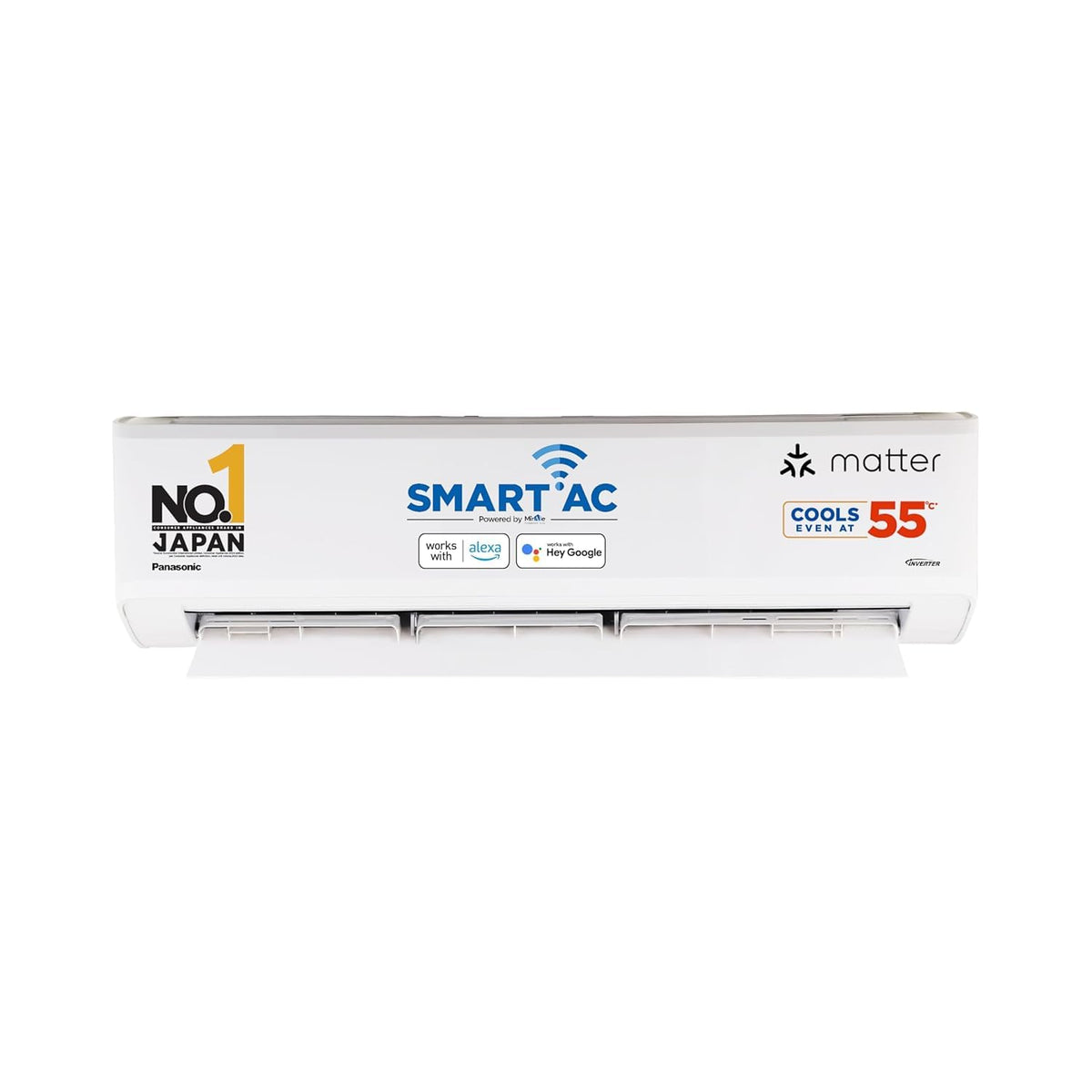

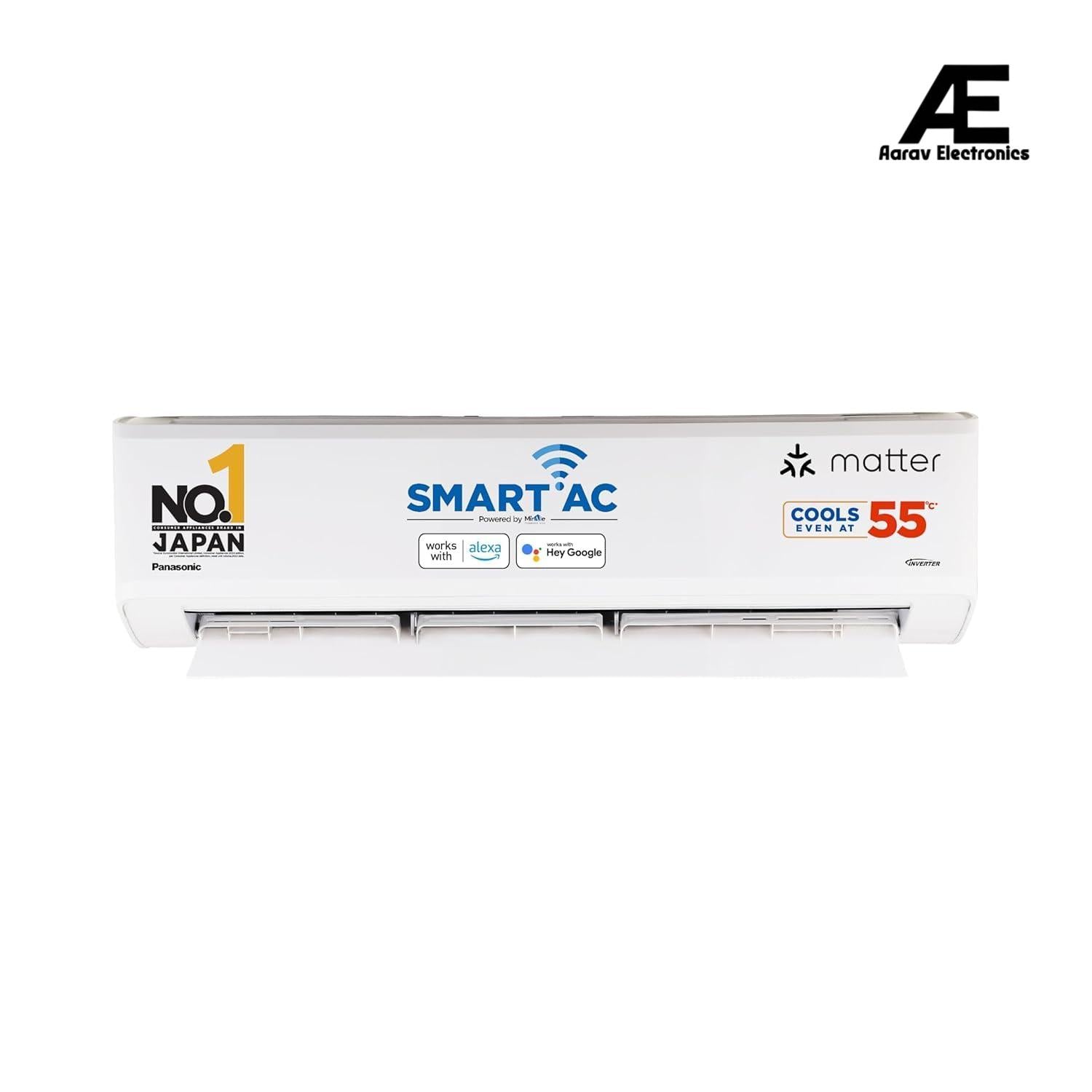

The Panasonic 1 Ton Smart Inverter Split AC is designed for efficient and intelligent cooling in small-sized rooms (up to 120 sq. ft.). Powered by True AI technology, this AC automatically analyzes room temperature and usage patterns to optimize cooling performance while reducing power consumption. With an annual energy consumption of just 667.36 kWh, it strikes the right balance between comfort and savings.

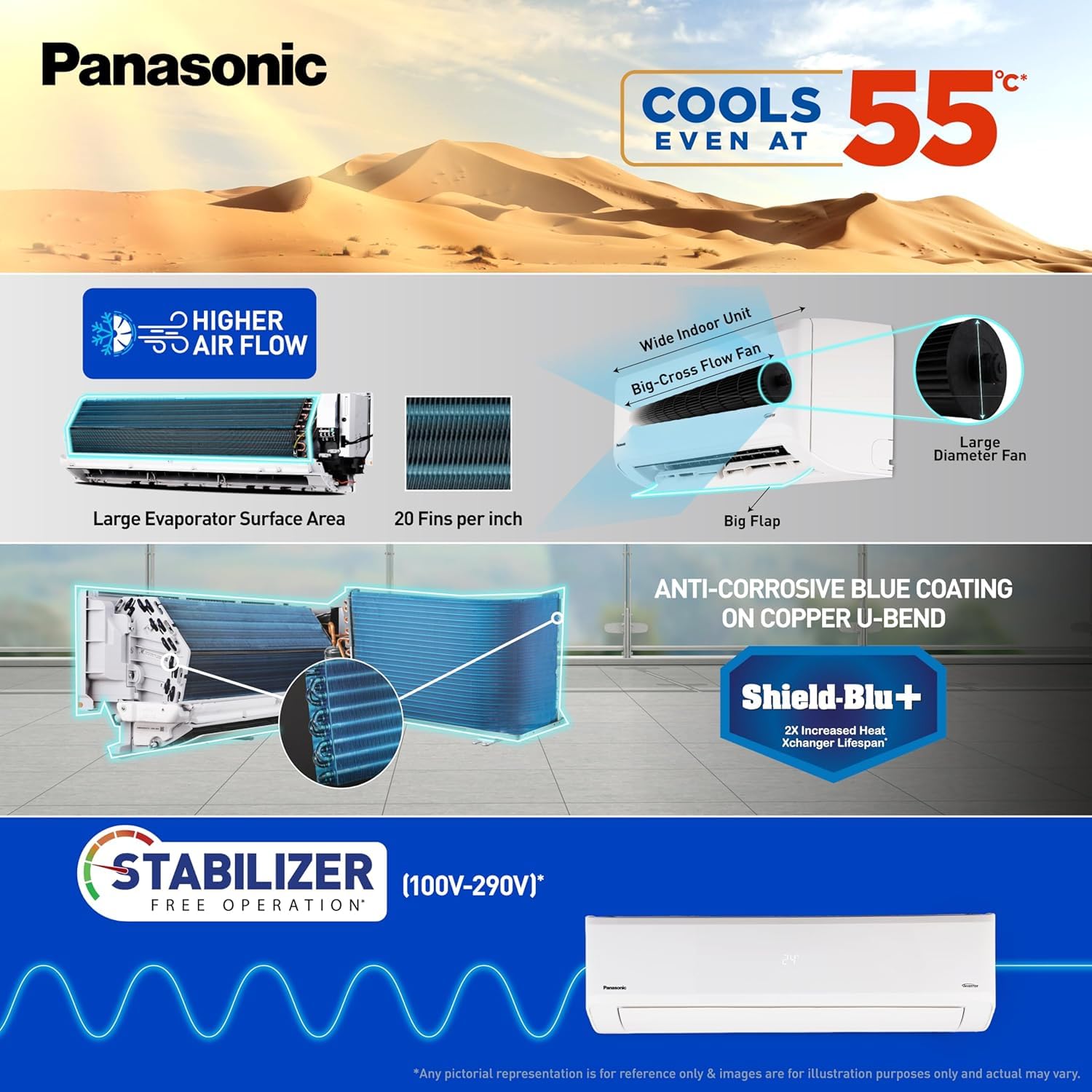

Equipped with Powerful Jetstream airflow and Aerowings, this AC throws cool air quickly and evenly across the room through its 4-Way Swing, eliminating hot spots. The Wi-Fi enabled Miraie App allows you to control temperature, modes, and schedules remotely, while voice commands via Alexa and Google Assistant add hands-free convenience. Built with eco-friendly R32 refrigerant and a durable design, it delivers reliable cooling even during peak summers.
Specifications
GENERAL INFORMATION
| Type | Cooling Only |
| Tonnage Class (TR) | 1.0 |
| Model [50Hz] | CS/CU-WU12BKYFM |
| Cooling Capacity Standard [Min. - Max.] (Btu/h) | 11772 [5297 - 12949] |
| Cooling Capacity Standard [Min. - Max.] (W) | 3450 [1553 - 3795] |
| ISEER | 4.00 |
| Annual Power Consumption (kWh) | 667.36 |
| Star Rating | 3 |
| Moisture Removal Rate (l/h) | 1.0 |
| Moisture Removal Rate (Pt/h) | 2.1 |
| Air Circulation (Indoor) (mᵌ/min) | 13.5 |
| Air Circulation (Indoor) (ftᵌ/min) | 477 |
| Refrigerant | R-32 |
| Operating Temp. Range (℃) | 16 ~ 55 |
| Operating Volt. Range (V) | 145 - 285 |
| Power Supply Source | Indoor |
ELECTRICAL DATA
| Voltage (V-AC) | 230 |
| Phase (Φ) | Single Phase |
| Running Current (A) | Running Current (A) |
| Power Input, Standard Cooling [Min. - Max.] (W) | 1095 [360 - 1478] |
NET DIMENSIONS OF THE INDOOR UNIT
| Length (L) (cm) | 87.0 |
| Breadth (B) (cm) | 23.6 |
| Height (H) (cm) | 29.6 |
GROSS DIMENSIONS OF THE INDOOR UNIT
| Length (L) (cm) | 96.0 |
| Breadth (B) (cm) | 27.6 |
| Height (H) (cm) | 36.0 |
NET DIMESNIONS OF THE OUTDOOR UNIT
| Length (L) (cm) | 78.0 |
| Breadth (B) (cm) | 28.8 |
| Height (H) (cm) | 54.2 |
GROSS DIMENSIONS OF THE OUTDOOR UNIT
| Length (L) (cm) | 90.0 |
| Breadth (B) (cm) | 40.5 |
| Height (H) (cm) | 60.7 |
NOISE LEVEL
| Indoor (H/Q) [dB-A] | 43/36 |
| Outdoor [dB-A] | 53 |
NET WEIGHT
| IDU [ODU] (kg) | 10 [22] |
| IDU [ODU] (lb) | 22 [48.5] |
GROSS WEIGHT
| IDU [ODU] (kg) | 11 [26] |
| IDU [ODU] (lb) | 24.2 [57.3] |
REFRIGERANT PIPE DIAMETER
| Liquid Side (cm) | Ø0.635 |
| Gas Side (cm) | Ø0.952 |
PIPE EXTENSION
| Chargeless Pipe Length * (m) | 7.5 |
| Maximum Pipe Length * (m) | 10 |
| Maximum Elevation Length * (m) | 5 |
| Additional Refrigerant Gas * (g/m) | 10 |
