Description

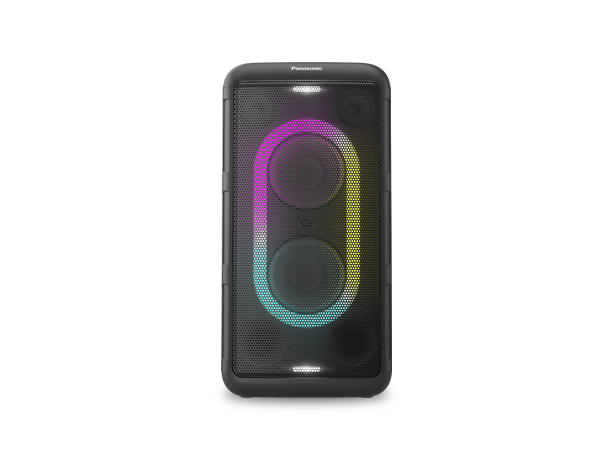

The Panasonic SC-BMAX10WWK is a powerful party speaker system built to deliver room-filling sound, deep bass, and exciting lighting effects for house parties, karaoke nights, and everyday music listening. With a 2-channel digital amplifier, dual woofers, and multi-color speaker illumination, this system creates an energetic atmosphere while maintaining clear vocals and punchy bass.
It supports Bluetooth 5.0 with multipoint connectivity, USB playback & charging, FM radio, AUX & Optical input, and even Mic and Guitar inputs for karaoke and live performances. Whether powered through AC or battery, the BMAX10WWK ensures strong performance with Panasonic’s signature sound tuning.
Specifications
GENERAL INFORMATION
| Color | Black |
| Amplifier Type | 2ch Digital Amp (Stereo) |
| RMS Output Power (AC Power Supply) Front ch | 150 W 75 W + 75 W (30% THD) |
| RMS Output Power (AC Power Supply) Total RMS Stereo mode power | 150 W |
| RMS Output Power (Battery Power Supply) Front ch | 50 W 25 W + 25 W (1% THD) |
| RMS Output Power (Battery Power Supply) Total RMS Stereo mode power | 50 W |
| Speaker Unit Front Speaker | 5.7 cm Tweeter x2 14 cm Woofer x2 |
| Bass Expand | Bass Reflex Port |
| USB Port | USB (Play & Charge(1A))*² |
| USB Standard | USB 2.0 full speed |
| Support Format | MP3 |
| Playback | Y *³ |
| Bluetooth Version | Ver. 5.0 |
| Bluetooth Class | Class 1 |
| Bluetooth Codec | SBC |
| Bluetooth Multi-point | Y(Connect up to 2 devices at a time.) |

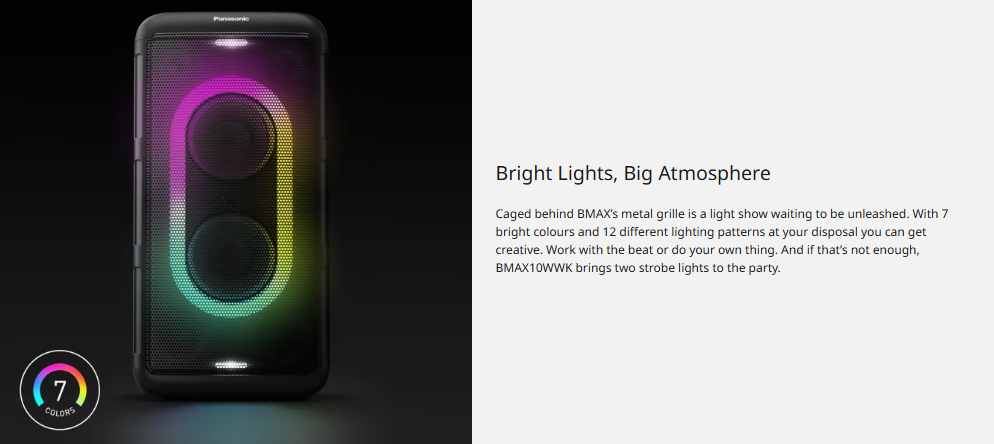

| Illumination | Multi-color Speaker Illumination (7 color) |
| Flash Light | Y |
| Preset EQ | 5 types (ROCK,JAZZ,SAMBA,POP,FLAT) |
| Chain Connection | Y (Up to 2 devices)*⁴ |
| Karaoke | Y (Echo Level Setting) |
TERMINALS
| USB Port | x1 |

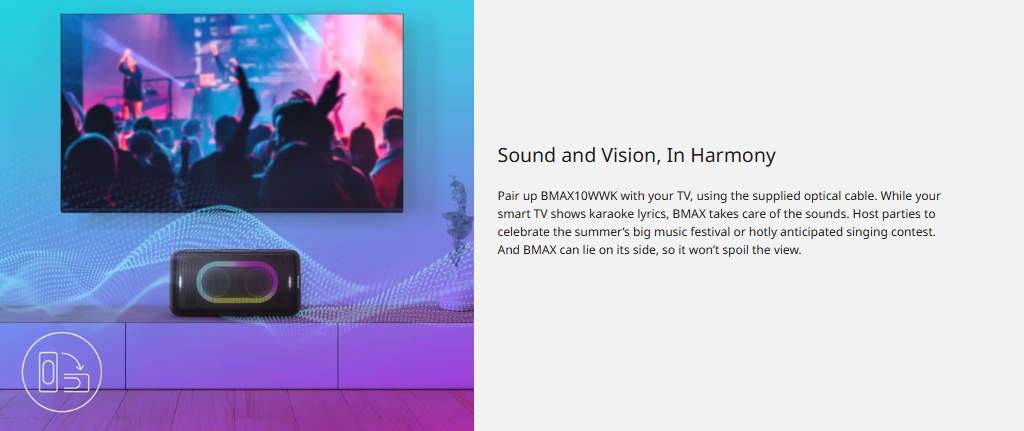

| Audio IN | AUX (3.5mm) x1 / Opt-in (Square type) x1 |
| Audio OUT | x1 (3.5mm) |
| Guitor IN | x1 (6.3mm) |
| Mic Jack (for Dynamic Microphone)*⁵ | x1 (6.3mm) |
ADDITIONAL FEATURES
| Power Supply AC | AC 110 - 240 V, 50H/60Hz |
| Power Consumption *⁶ (Normal Use / Low Power Mode / Bluetooth Low Power Mode) | 65 W / 0.5 W / 2.0 W |
| Built-in Battery Operation Type | Li-ion 4 cell, 7.2V, cap : 4950mAh |
| Built-in Battery Operation Playback Time | Approx. 15 hours *⁷ |
| Built-in Battery Operation Charging Time (25℃) | Approx. 4 hours |
| Built-in Battery Operation Battery Level Indication | Y |

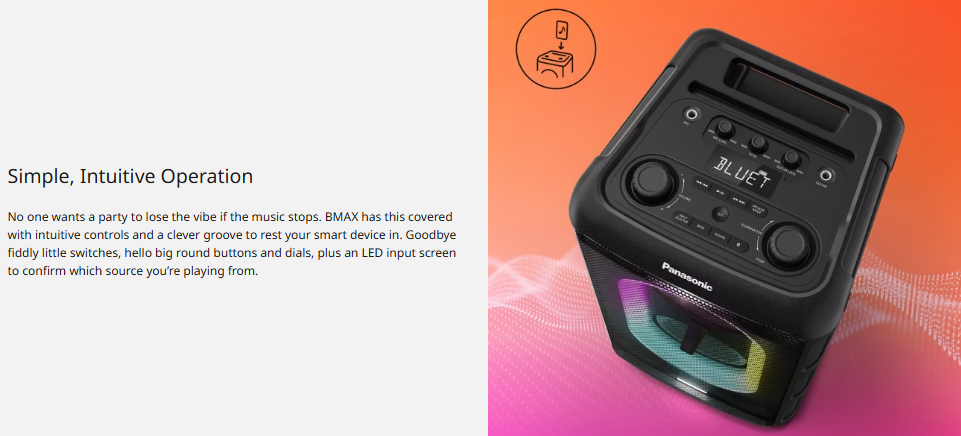

| Display Type | UNION Jack (White color) |
| Dimmer | Y |
| Auto Power OFF | Y |
| Handle | Built-in Handle |
| Horizontal / Vertical Placement | Y |
DIMENSIONS, WEIGHT (MAIN UNIT)
| Dimensions (W x H x D) (w/o carton) | 280 x 550 x 310 mm |
| Dimensions (W x H x D) (with carton) | 362 x 633 x 338 mm |
| Weight (w/o carton) | 9.3 kg |
| Weight (with carton) | 12 kg |
ACCESSORIES
| AC Cord | Y |
| AV Cable | Optical Cable (1.5m) |
| Operating Instruction | Y |
| Operating Instruction Languages | 11 Languages *⁸ |
