Description

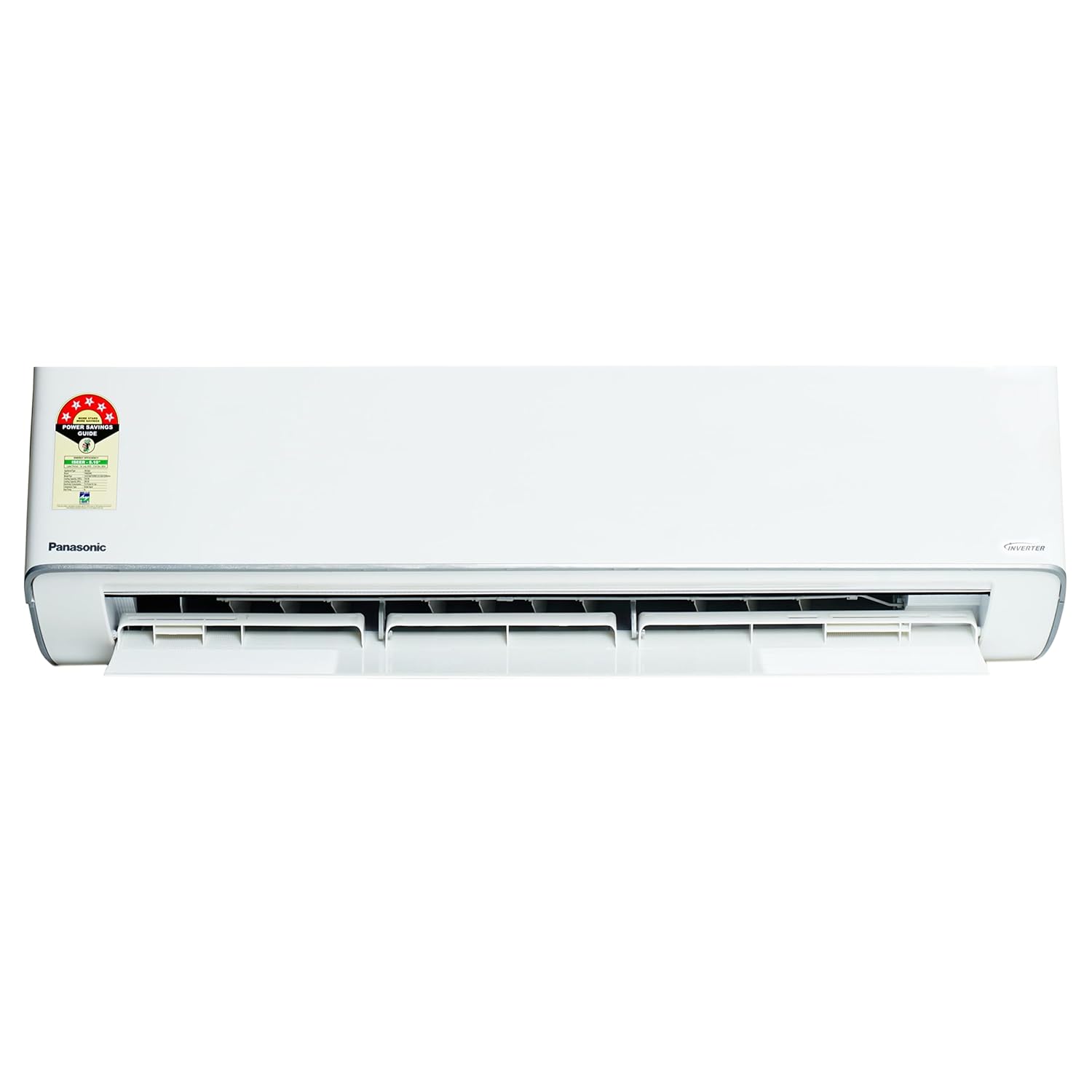

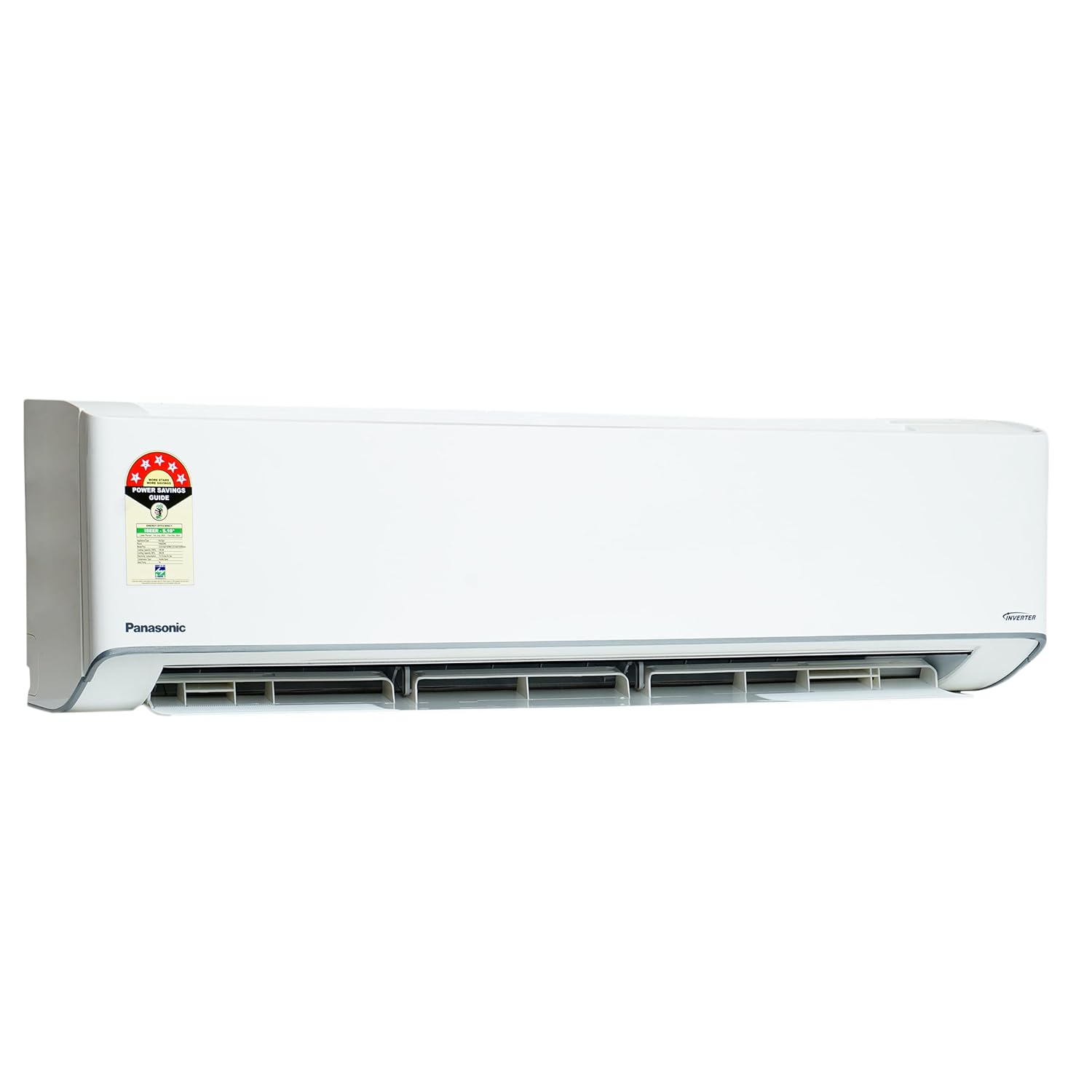

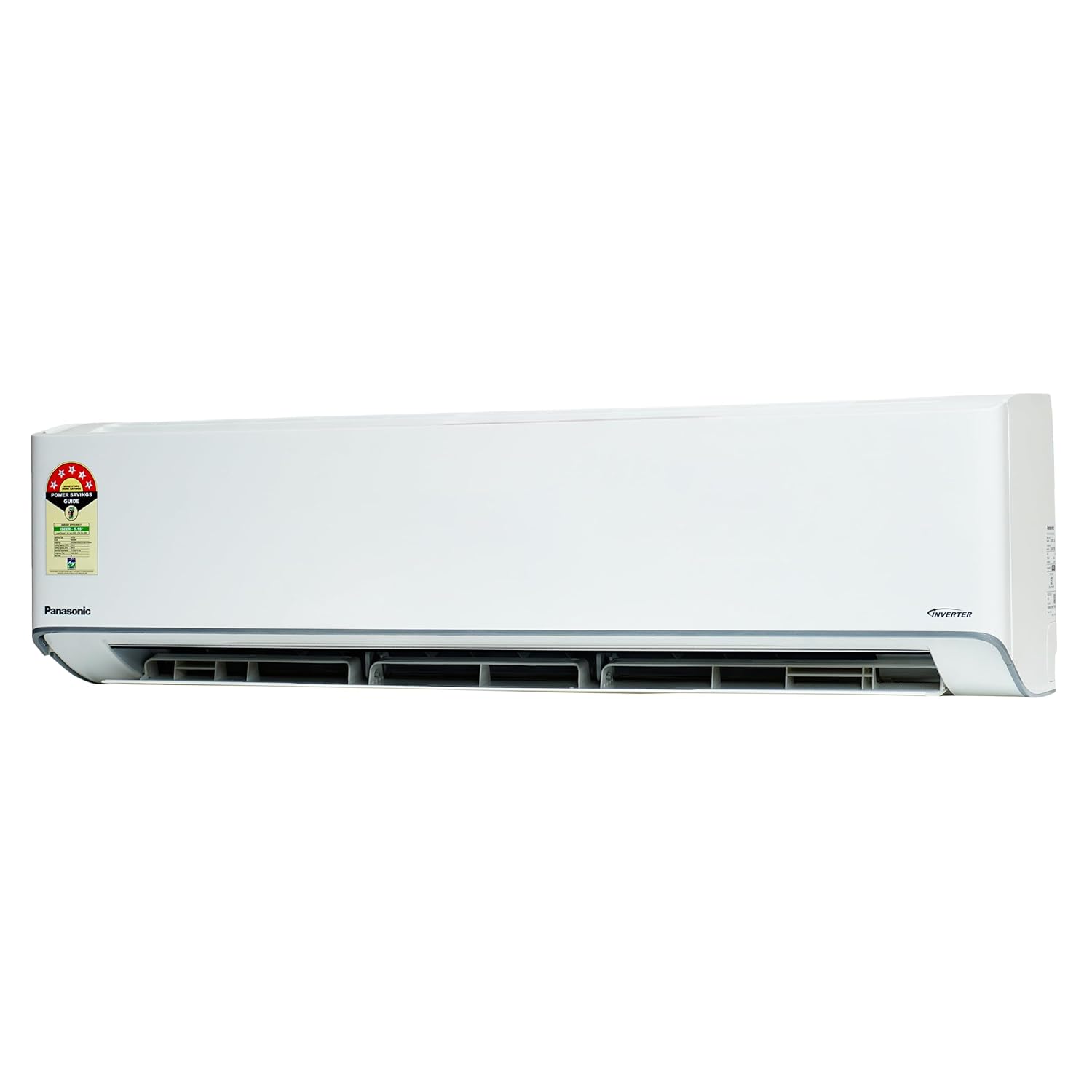

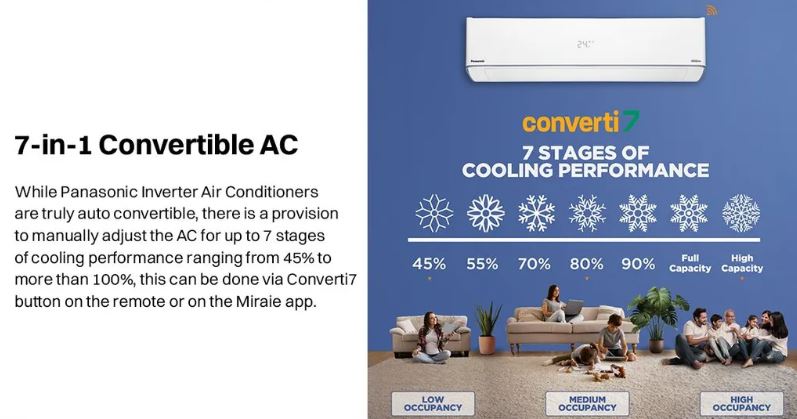

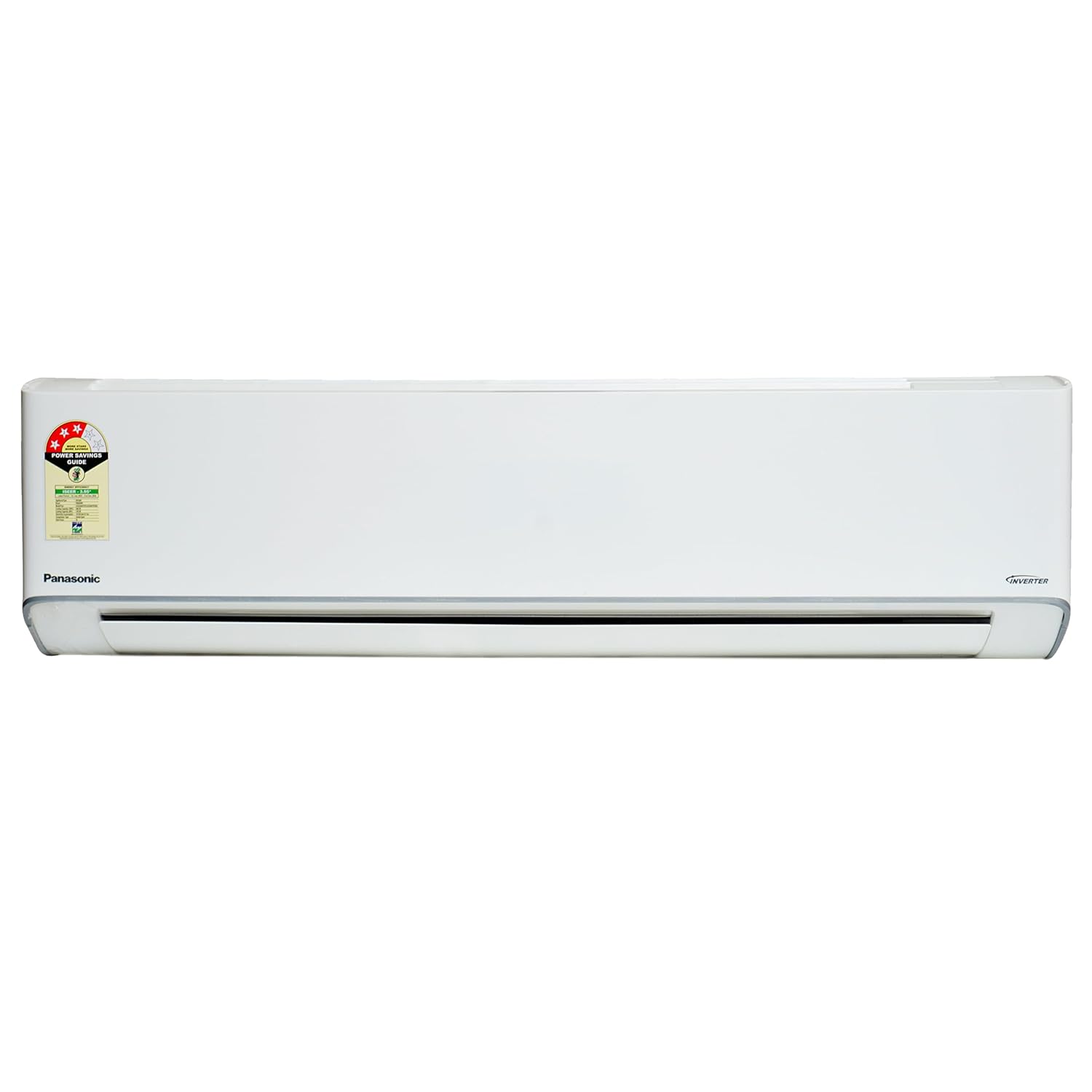

The Panasonic EU Series 2 Ton 3 Star Inverter Split Air Conditioner is designed for powerful and reliable cooling in large rooms and living spaces. With a strong 24,000 BTU cooling capacity and advanced inverter technology, this AC delivers consistent performance while optimizing power consumption. Its 7-in-1 Convertible mode allows you to adjust cooling capacity as per your needs, making it ideal for both peak summer afternoons and energy-saving night usage.
Equipped with 4-Way Air Swing and High Airflow, this air conditioner ensures uniform cooling in every corner of the room. The Crystal Clean technology keeps the internal unit clean for better hygiene and long-term performance, while the Eco-Tough outdoor casing protects the unit from harsh weather conditions. Featuring PM0.1 and Anti-Dust filters, this AC not only cools efficiently but also helps maintain cleaner indoor air for a healthier environment.
Specifications
GENERAL INFORMATION
| Type | Cooling Only |
| Tonnage Class (TR) | 2.0 |
| Model [50Hz] | CS/CU-EU24AKY3F |
| Cooling Capacity Standard [Min. - Max.] (Btu/h) | 21155 [9520 - 23270] |
| Cooling Capacity Standard [Min. - Max.] (W) | 6200 [2790 - 6820] |
| ISEER | 3.95 |
| Annual Power Consumption (kWh) | 1215.89 |
| Star Rating | 3 |
| Moisture Removal Rate (l/h) | 2.3 |
| Moisture Removal Rate (Pt/h) | 4.8 |
| Air Circulation (Indoor) (mᵌ/min) | 20.4 |
| Air Circulation (Indoor) (ftᵌ/min) | 720 |
| Refrigerant | R-32 |
| Operating Temp. Range (℃) | 16 ~ 52 |
| Operating Volt. Range (V) | 145-285 |
| Power Supply Source | Indoor |
ELECTRICAL DATA
| Voltage (V-AC) | 230 |
| Frequency (Hz) | 50 |
| Phase (Φ) | Single Phase |
| Running Current (A) | 9.0 |
| Power Input, Standard Cooling [Min. - Max.] (W) | 1975 [661 - 2666] |
DIMENSIONS OF THE INDOOR UNIT
| Length (L) (cm) | 104.0 |
| Breadth (B) (cm) | 24.4 |
| Height (H) (cm) | 29.6 |

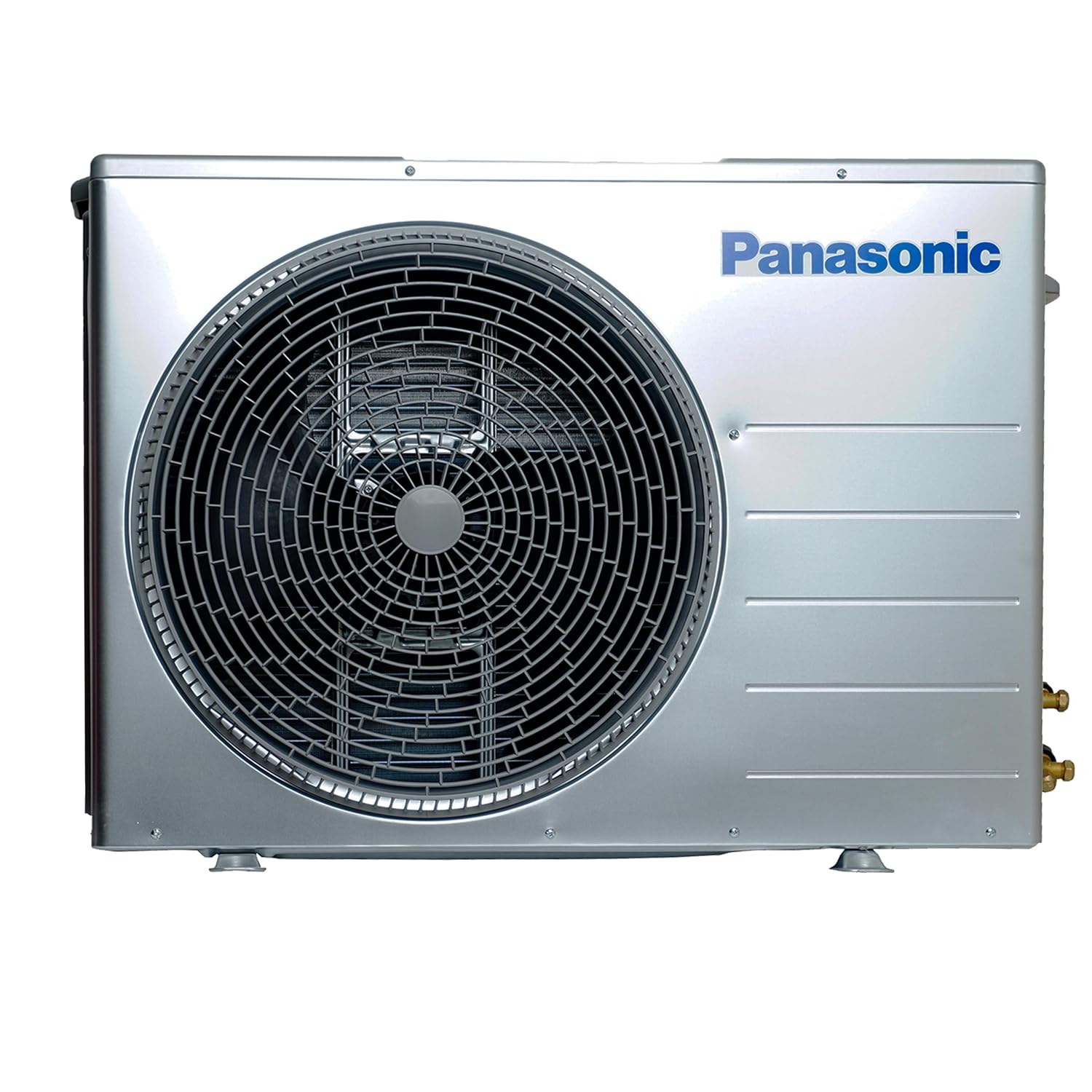

DIMENSIONS OF THE OUTDOOR UNIT
| Length (L) (cm) | 82.4 |
| Breadth (B) (cm) | 29.9 |
| Height (H) (cm) | 61.9 |
NOISE LEVEL
| Indoor (H/Q) [dB-A] | 49/36 |
| Outdoor [dB-A] | 56 |
NET WEIGHT
| IDU [ODU] (kg) | 12 [29] |
| IDU [ODU] (lb) | 26.5 [63.9] |
GROSS WEIGHT
| IDU [ODU] (kg) | 14 [32] |
| IDU [ODU] (lb) | 30.9 [70.5] |
REFRIGERANT PIPE DIAMETER
| Liquid Side (cm) | Ø0.635 |
| Gas Side (cm) | Ø1.270 |
PIPE EXTENSION
| Chargeless Pipe Length * (m) | 7.5 |
| Maximum Pipe Length * (m) | 15 |
| Maximum Elevation Length * (m) | 10 |
| Additional Refrigerant Gas * (g/m) | 20 |
