Description

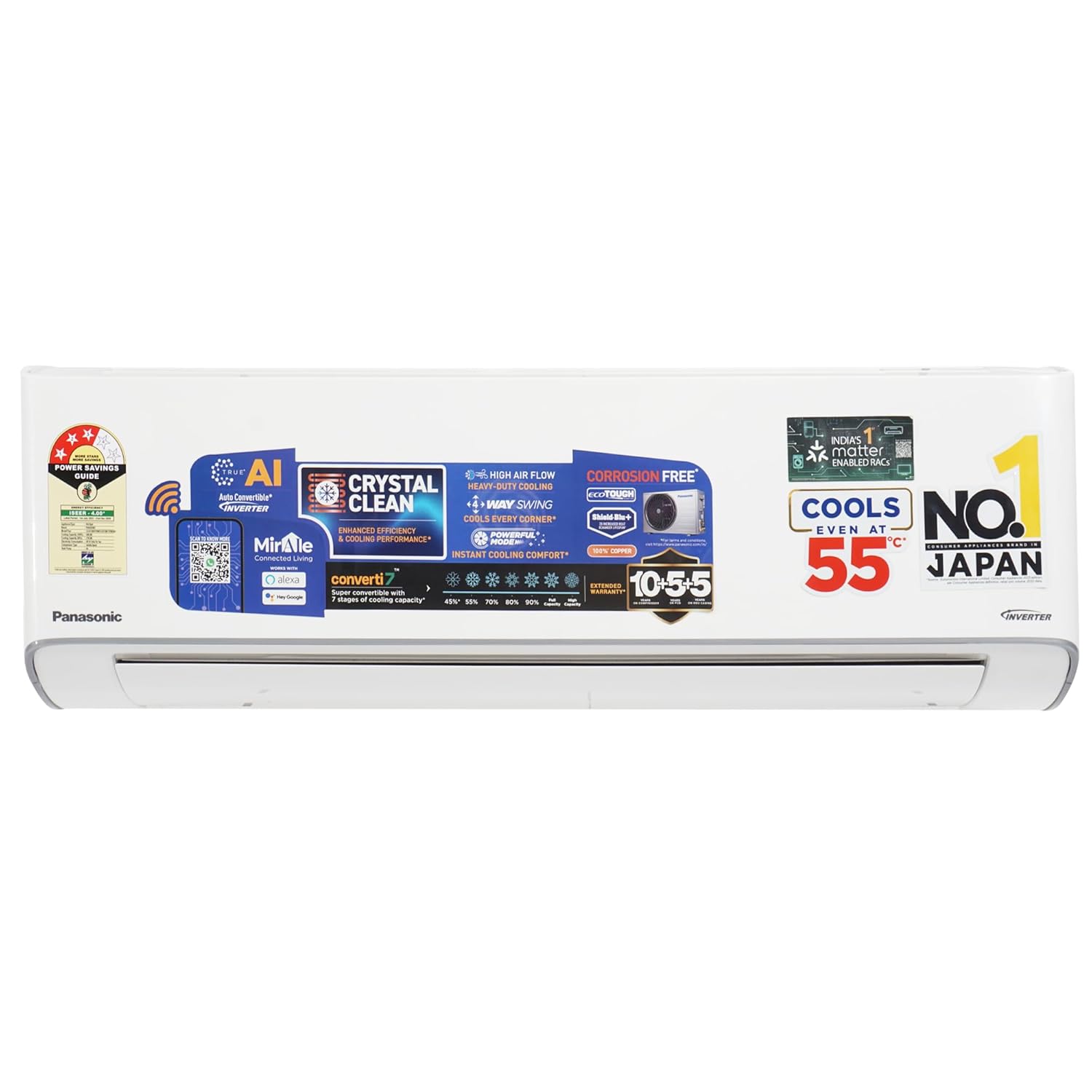

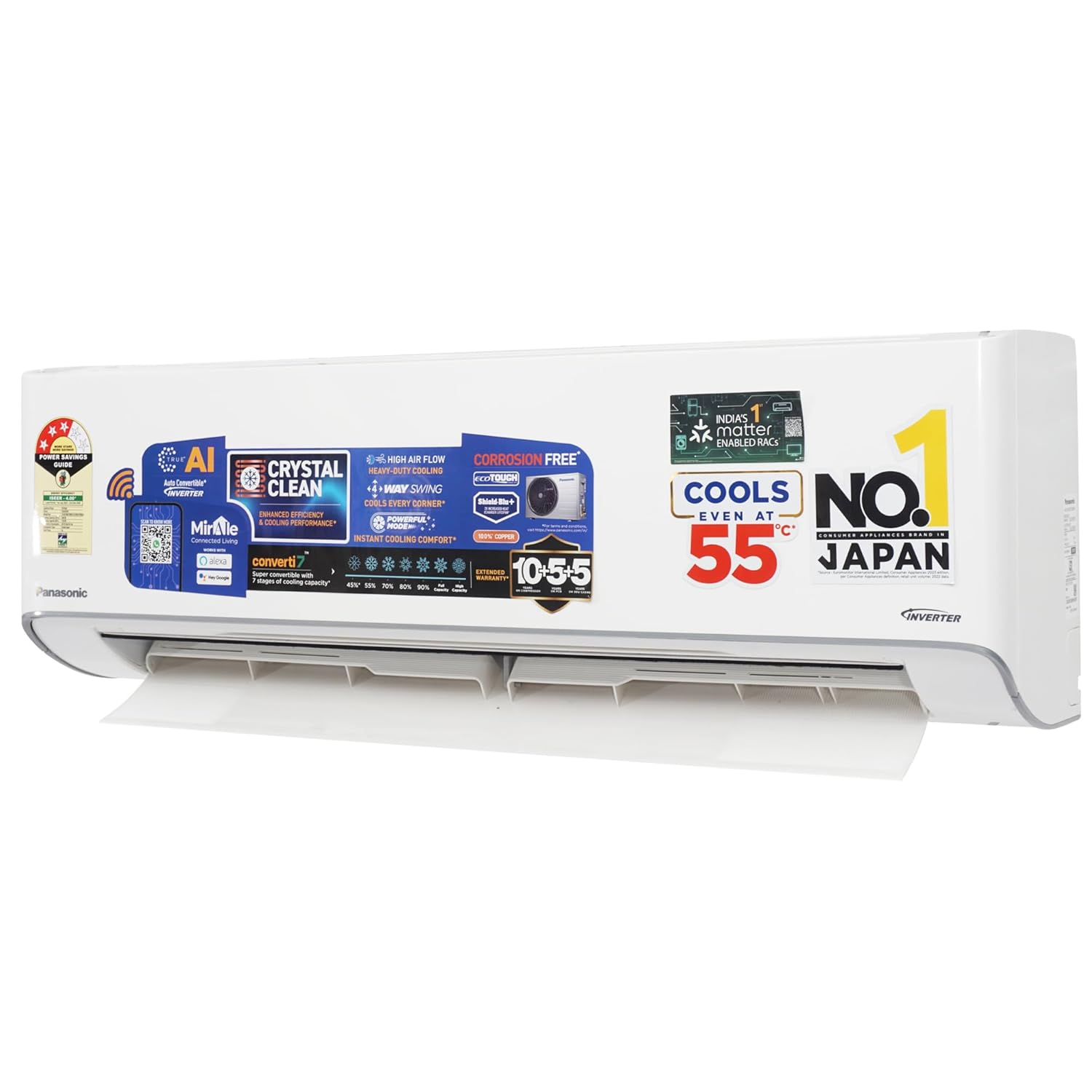

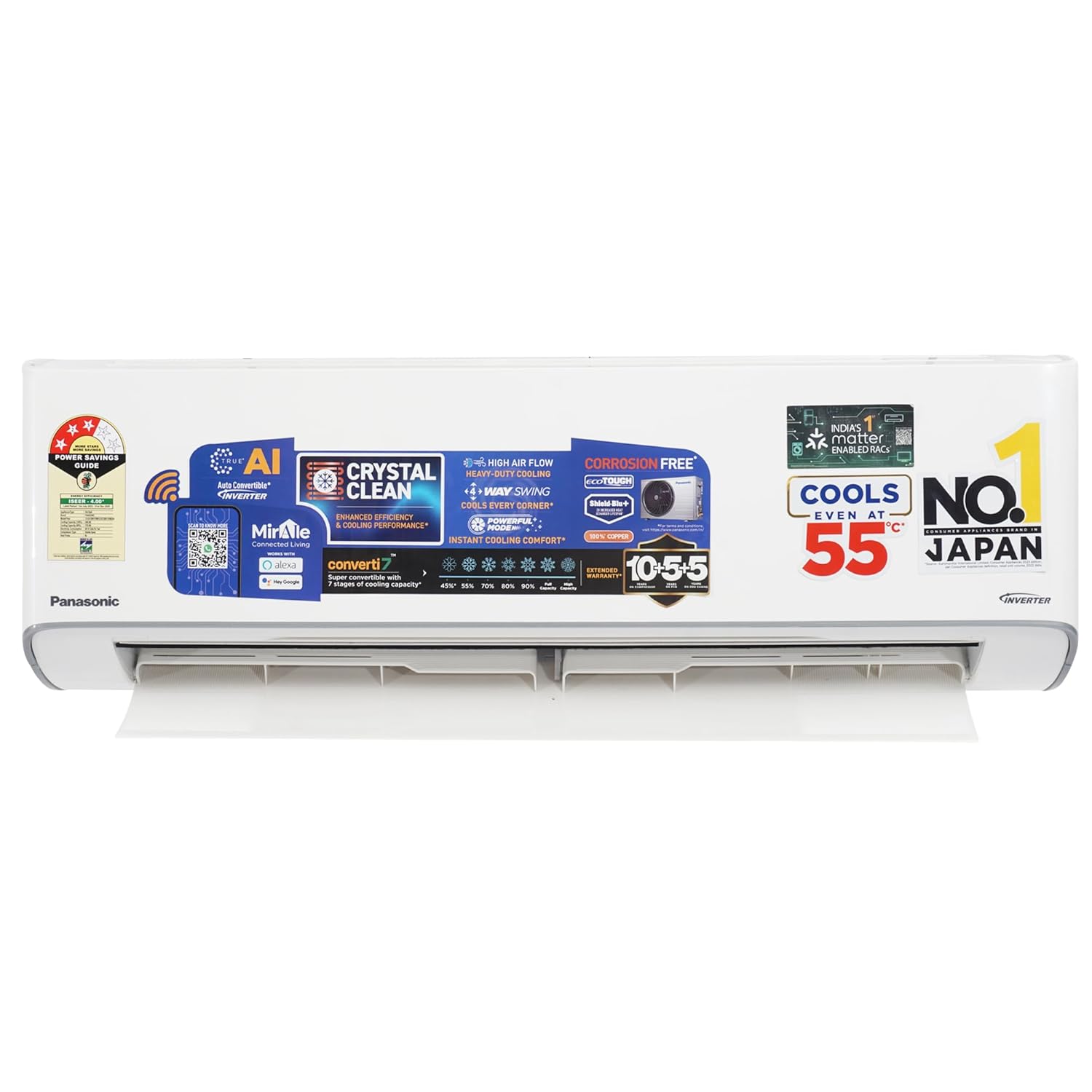

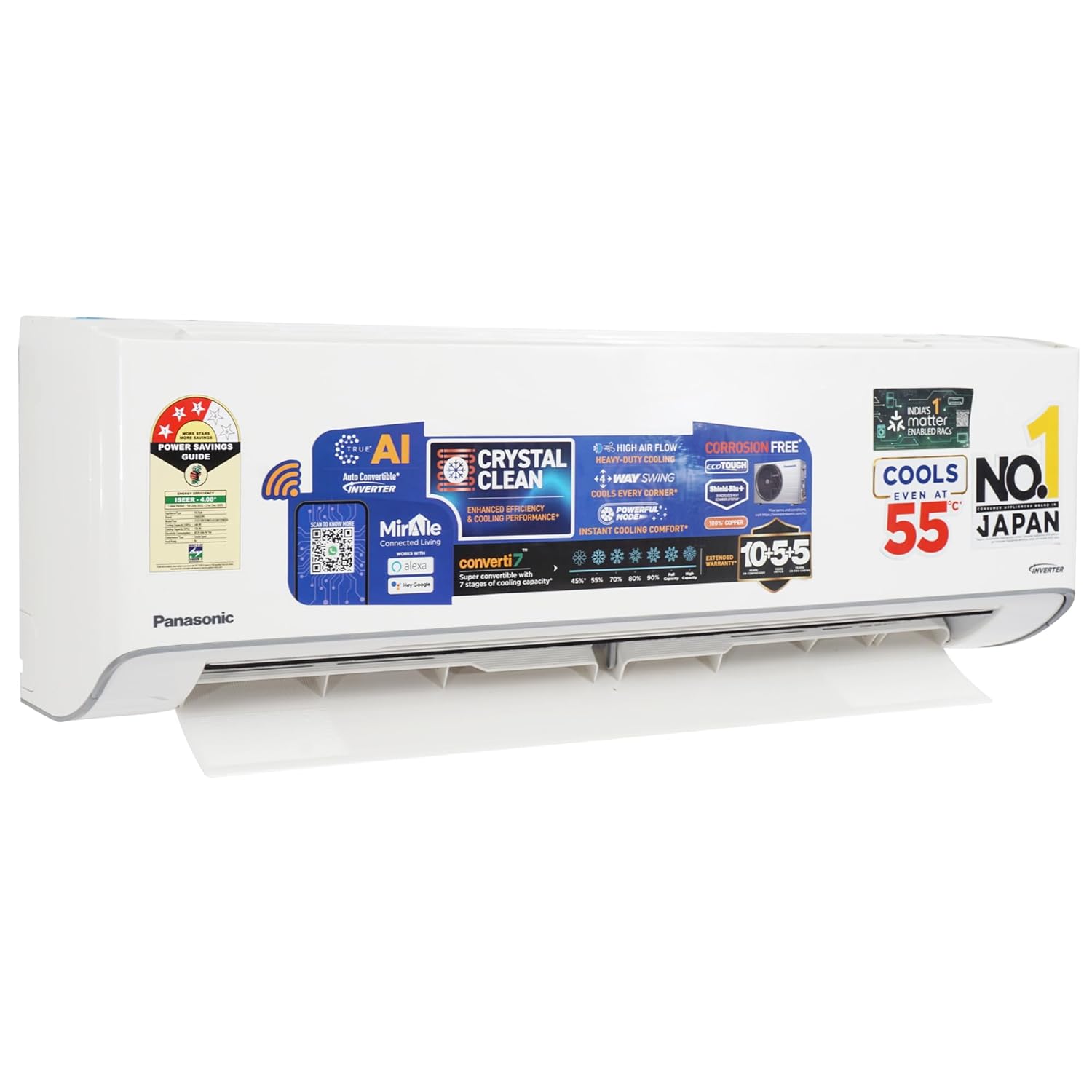

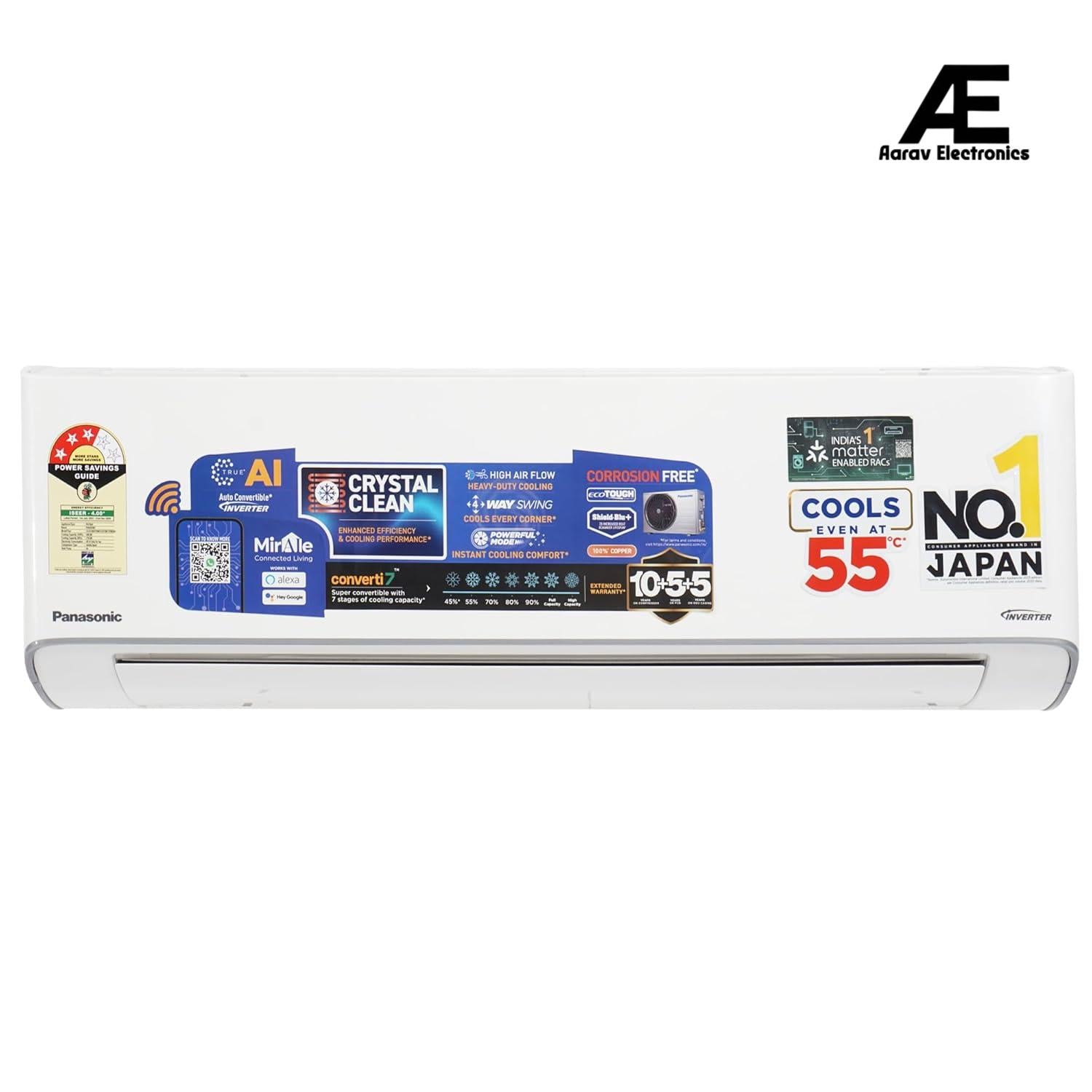

The Panasonic CS/CU-EU12BKY3FM 1 Ton Inverter Split Air Conditioner is designed to deliver powerful, efficient, and intelligent cooling for modern homes. With Wi-Fi enabled smart connectivity and voice assistant support, you can conveniently control your AC from anywhere using your smartphone or compatible smart devices. Its inverter technology optimizes compressor speed based on cooling demand, ensuring consistent comfort with lower electricity consumption.
Built with EcoTough and Shield Blu+ protective coating, this AC offers enhanced durability against corrosion and harsh weather conditions. Using eco-friendly R32 refrigerant, along with two-way swing and high airflow design, it provides faster and uniform cooling across the room. Backed by long-term warranties on compressor, PCB, and outdoor casing, this model ensures peace of mind along with reliable long-lasting performance.
Specifications
GENERAL INFORMATION
| Type | Cooling Only |
| Tonnage Class (TR) | 1.0 |
| Model [50Hz] | CS/CU-EU12BKY3FM |
| Cooling Capacity Standard [Min. - Max.] (Btu/h) | 11772 [5297 - 12949] |
| Cooling Capacity Standard [Min. - Max.] (W) | 3450 [1553 - 3795] |
| ISEER | 4.00 |
| Annual Power Consumption (kWh) | 667.91 |
| Star Rating | 3 |
| Moisture Removal Rate (l/h) | 1.0 |
| Moisture Removal Rate (Pt/h) | 2.1 |
| Air Circulation (Indoor) (mᵌ/min) | 14.0 |
| Air Circulation (Indoor) (ftᵌ/min) | 494 |
| Refrigerant | R-32 |
| Operating Temp. Range (℃) | 16 ~ 55 |
| Operating Volt. Range (V) | 145 - 285 |
| Power Supply Source | Indoor |
ELECTRICAL DATA
| Voltage (V-AC) | 230 |
| Phase (Φ) | Single Phase |
| Running Current (A) | 5.2 |
| Power Input, Standard Cooling [Min. - Max.] (W) | 1140 [348 - 1539] |
NET DIMENSIONS OF THE INDOOR UNIT
| Length (L) (cm) | 87.0 |
| Breadth (B) (cm) | 22.9 |
| Height (H) (cm) | 29.5 |
GROSS DIMENSIONS OF THE INDOOR UNIT
| Length (L) (cm) | 95.2 |
| Breadth (B) (cm) | 28.3 |
| Height (H) (cm) | 37.4 |

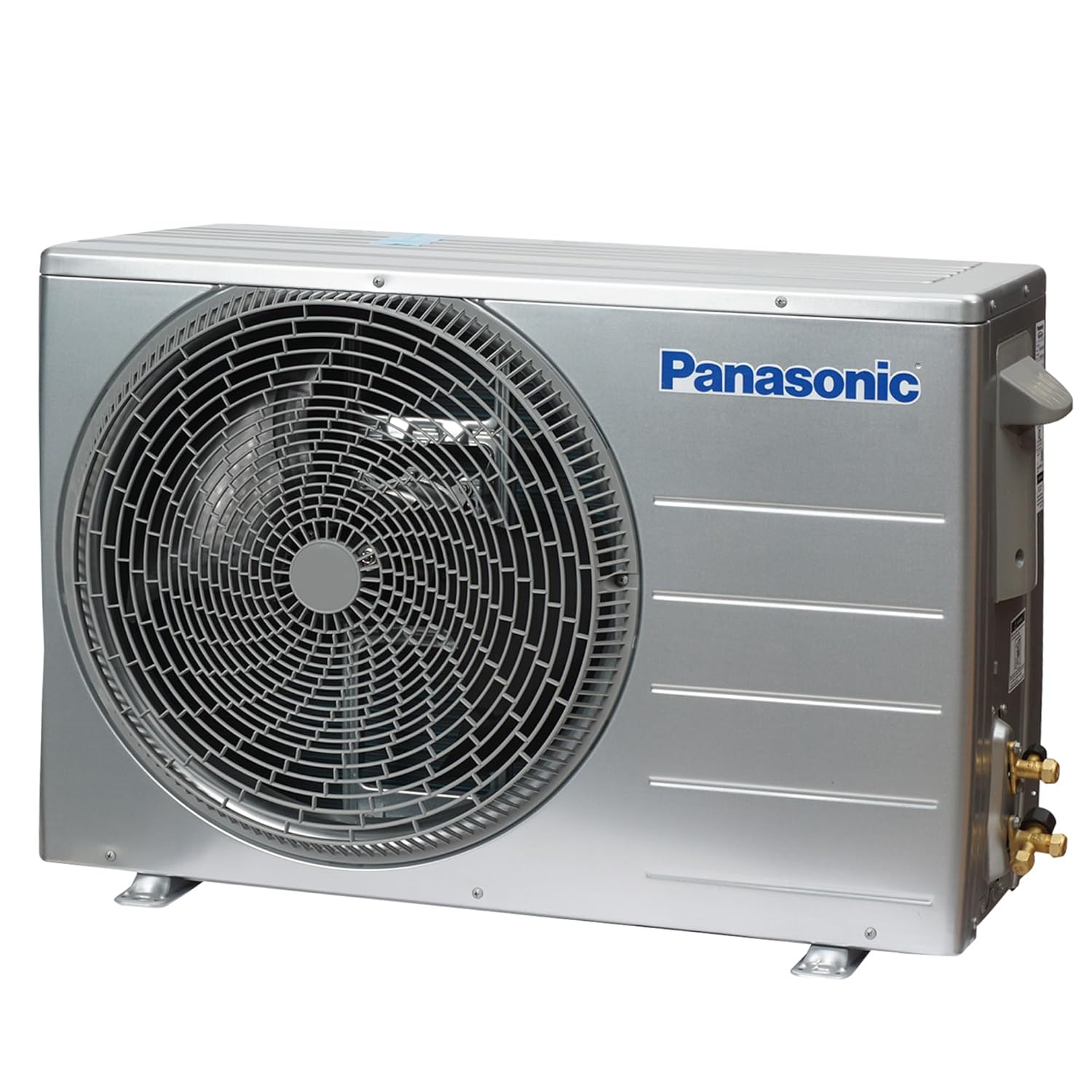

NET DIMENSIONS OF THE OUTDOOR UNIT
| Length (L) (cm) | 67.2 |
| Breadth (B) (cm) | 24.0 |
| Height (H) (cm) | 52.0 |
GROSS DIMENSIONS OF THE OUTDOOR UNIT
| Length (L) (cm) | 79.5 |
| Breadth (B) (cm) | 37.0 |
| Height (H) (cm) | 57.5 |
NOISE LEVEL
| Indoor (H/Q) [dB-A] | 44/32 |
| Outdoor [dB-A] | 53 |
NET WEIGHT
| IDU [ODU] (kg) | 9 [20] |
| IDU [ODU] (lb) | 19.8 [44] |
GROSS WEIGHT
| IDU [ODU] (kg) | 11 [24] |
| IDU [ODU] (lb) | 24.2 [53] |
REFRIGERANT PIPE DIAMETER
| Liquid Side (cm) | Ø0.635 |
| Gas Side (cm) | Ø0.952 |
PIPE EXTENSION
| Chargeless Pipe Length * (m) | 7.5 |
| Maximum Pipe Length * (m) | 10 |
| Maximum Elevation Length * (m) | 5 |
| Additional Refrigerant Gas * (g/m) | 10 |
