Description

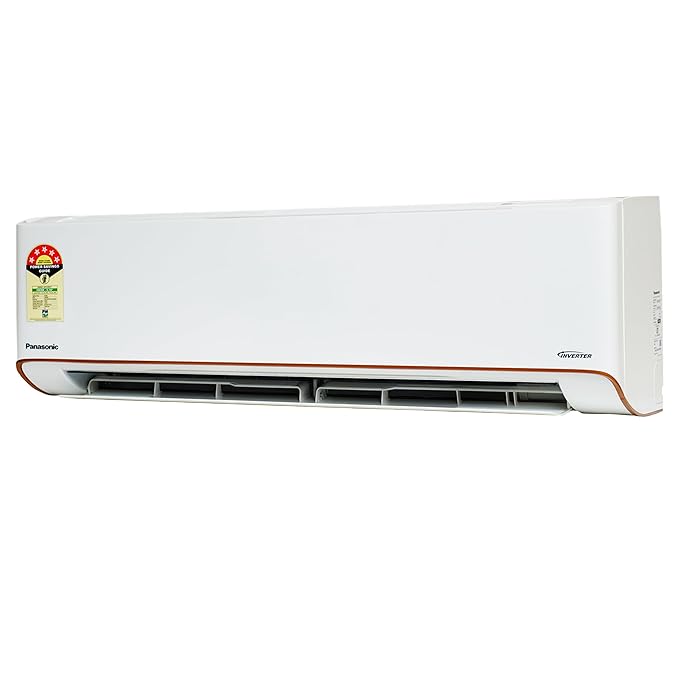

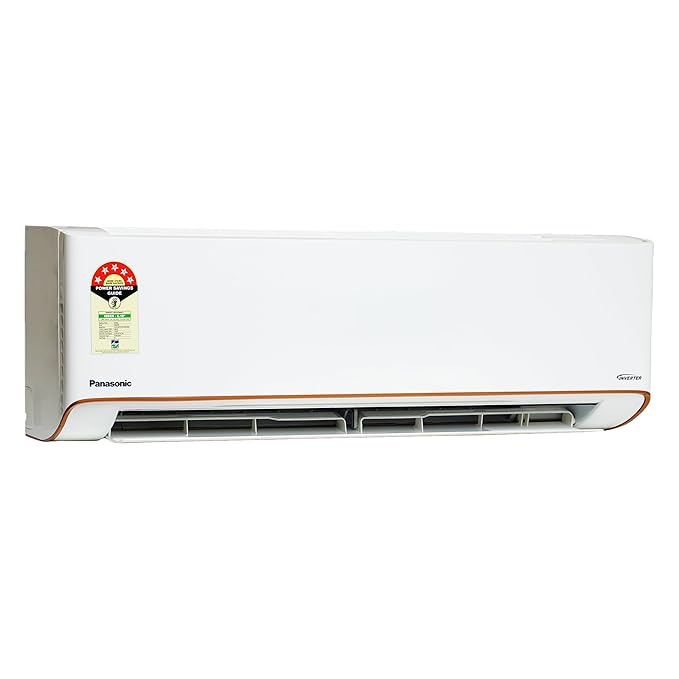

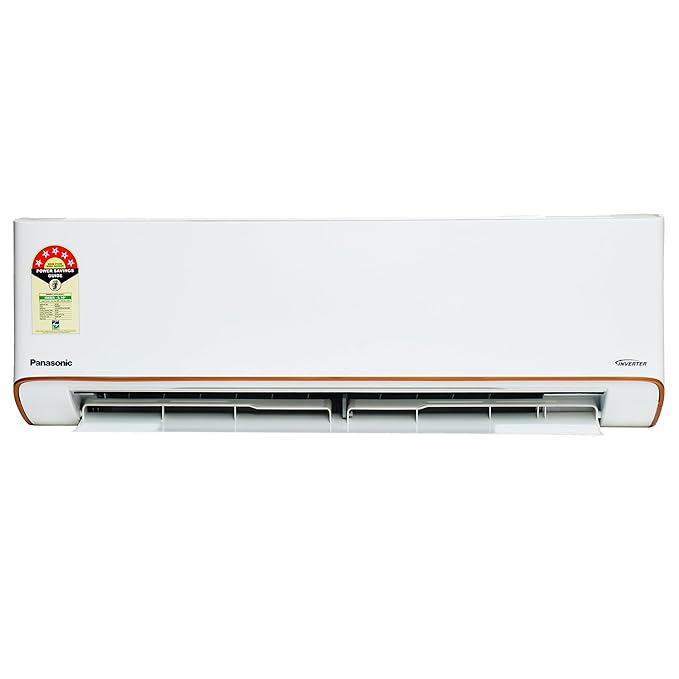

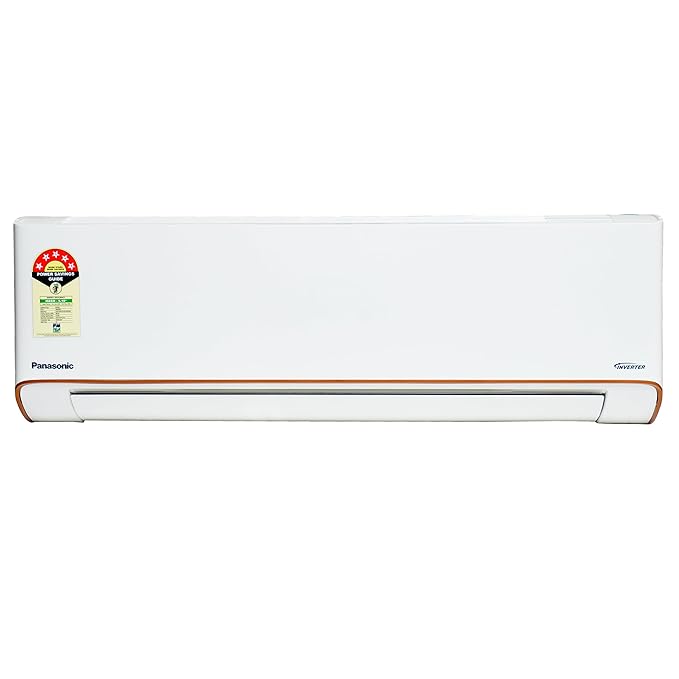

The Panasonic CS/CU-EU12AKY5 1 Ton Inverter Split AC is engineered to provide efficient cooling with low power consumption, making it an excellent choice for small-sized rooms. With a high energy efficiency rating of 5.1 and low annual power consumption, this AC ensures powerful performance while keeping electricity bills under control. The inverter technology adjusts compressor speed according to cooling demand, maintaining stable temperature and enhanced comfort.
Designed for healthier indoor air, this model comes with air purification, dust filter, and anti-bacterial filter that help remove impurities, allergens, and odors. The built-in dehumidifier reduces excess moisture, making the room more comfortable during humid conditions. With a sleek white finish, quiet operation, and reliable Panasonic build quality, this AC is ideal for everyday home use.
Specifications
GENERAL INFORMATION
| Type | Cooling Only |
| Tonnage Class (TR) | 1.0 |
| Model [50Hz] | CS/CU-EU12AKY5 |
| Cooling Capacity Standard [Min. - Max.] (Btu/h) | 11772 [5306 - 12966] |
| Cooling Capacity Standard [Min. - Max.] (W) | 3450 [1555 - 3800] |
| ISEER | 5.10 |
| Annual Power Consumption (kWh) | 523.98 |
| Star Rating | 5 |
| Moisture Removal Rate (l/h) | 1.0 |
| Moisture Removal Rate (Pt/h) | 2.1 |
| Air Circulation (Indoor) (mᵌ/min) | 14.0 |
| Air Circulation (Indoor) (ftᵌ/min) | 494 |
| Refrigerant | R-32 |
| Operating Temp. Range (℃) | 16 ~ 52 |
| Operating Volt. Range (V) | 100-290 |
| Power Supply Source | Indoor |
ELECTRICAL DATA
| Voltage (V-AC) | 230 |
| Frequency (Hz) | 50 |
| Phase (Φ) | Single Phase |
| Running Current (A) | 4.0 |
| Power Input, Standard Cooling [Min. - Max.] (W) | 873 [279 - 1179] |
DIMENSIONS OF THE INDOOR UNIT
| Length (L) (cm) | 87.0 |
| Breadth (B) (cm) | 22.9 |
| Height (H) (cm) | 29.5 |

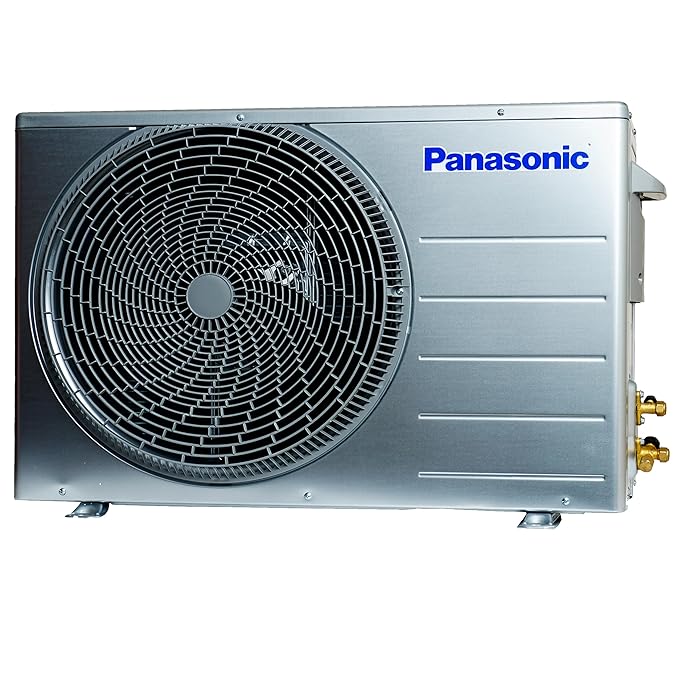

DIMENSIONS OF THE OUTDOOR UNIT
| Length (L) (cm) | 78.0 |
| Breadth (B) (cm) | 28.8 |
| Height (H) (cm) | 54.2 |
NOISE LEVEL
| Indoor (H/Q) [dB-A] | 44/32 |
| Outdoor [dB-A] | 53 |
NET WEIGHT
| IDU [ODU] (kg) | 10 [22] |
| IDU [ODU] (lb) | 22 [48.5] |
GROSS WEIGHT
| IDU [ODU] (kg) | 11 [26] |
| IDU [ODU] (lb) | 24.3 [57.3] |
REFRIGERANT PIPE DIAMETER
| Liquid Side (cm) | Ø0.635 |
| Gas Side (cm) | Ø0.952 |
PIPE EXTENSION
| Chargeless Pipe Length * (m) | 7.5 |
| Maximum Pipe Length * (m) | 10 |
| Maximum Elevation Length * (m) | 5 |
| Additional Refrigerant Gas * (g/m) | 10 |
