Description

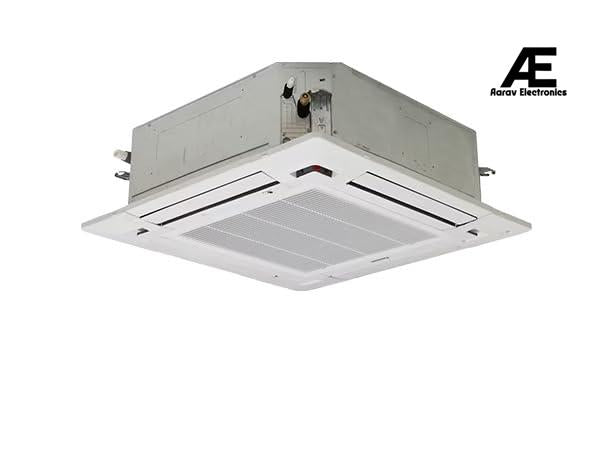

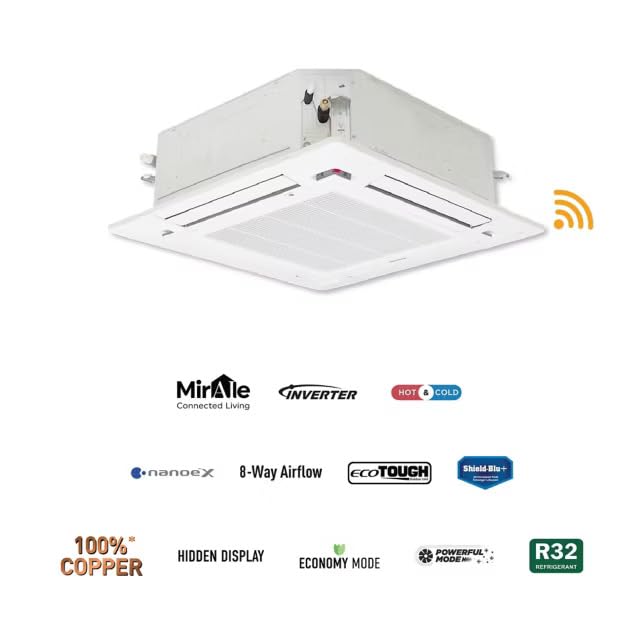

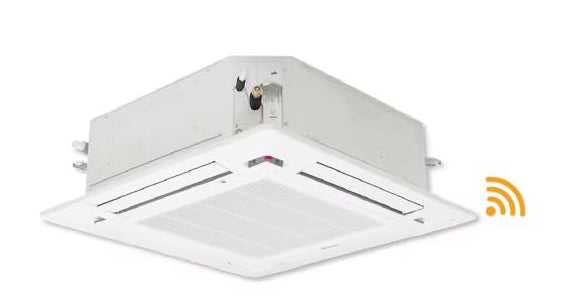

The Panasonic 3 Ton 4 Star Inverter Hot & Cold Cassette Air Conditioner (S-36PUY7H5YD) is a premium ceiling-mounted air conditioning solution designed for large commercial spaces such as offices, hotels, hospitals, showrooms, banquet halls, and conference rooms. Its 4-way airflow cassette design ensures uniform cooling and heating across the room, delivering consistent comfort in every corner.
Equipped with Inverter Twin Rotary Compressor, this AC intelligently adjusts power based on load, reducing electricity consumption while maintaining stable temperature. The built-in nanoe™ X Active Air Purification system helps inhibit viruses, bacteria, odours, and allergens, providing cleaner and healthier indoor air. With IoT (Wi-Fi) connectivity, you can conveniently control and monitor the AC from your smartphone.
Built for Indian conditions, it supports an extended operating range from -6°C to 52°C, features Shield Blue coated outdoor coils for corrosion protection, and comes with a durable SuperDyma Outdoor Unit along with long-term warranty coverage on PCB and compressor.
Specifications
GENERAL INFORMATION
| Model Indoor Unit | S-36PUY7H5YD |
| Model Outdoor Unit | U-36PZY7H5Y |
| Panel | CZ-KPUB6H9 |
| Capacity Rated Cooling W [Min. ~ Max.] | 10600 (5000-11000) |
| Capacity Rated Cooling Btu/hr [Min. ~ Max.] | 36169 (17061-37534) |
| Capacity Rated Heating W [Min. ~ Max.] | 10600 (5000-11000) |
| Capacity Rated Heating Btu/hr [Min. ~ Max.] | 36169 (17061-37534) |
| ISEER | 3.95 |
| Star Rating | 4 Star |
| Electrical Rating Cooling Running Current A [Rated ~ Max.] | 14.2~21 |
| Electrical Rating Cooling Power Input W [Min. ~ Max.] | 3240 (1200-3600) |
| Electrical Rating Heating Running Current A [Rated ~ Max.] | 13.2~19 |
| Electrical Rating Heating Power Input W [Min. ~ Max.] | 3000 (1000~3200) |
| Power Source V/Phase/Hz | 230V / 1ɸ / 50Hz |
INDOOR UNIT
| Air Volume H/M/L (CMH) | 2050/2000/1900 |
| Sound Pressure Level H/M/L dB(A) | 52/50/49 |
| Dimension Indoor LxBxH (cm) | 84.5 x 84.5 x 29.0 |
| Dimension Panel LxBxH (cm) | 95.0 x 95.0 x 4.2 |
| Net Weight Indoor Unit / Panel (Kg) | 26.5/5.5 |

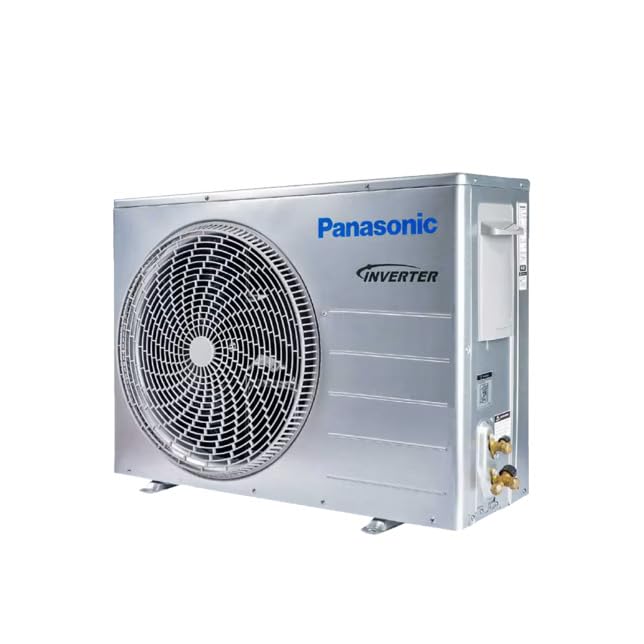

OUTDOOR UNIT
| Sound Pressure Level dB(A) | 60 |
| Dimension LxBxH (cm) | 87.5 x 32.0 x 75.0 |
| Net Weight Kg | 48 |
| Refrigerant Type | R-32 |
PIPING CONNECTION
| Gas (Flare) cm (inches) | 1.588 (5/8") |
| Liquid (Flare) cm (inches) | 0.952 (3/8'') |
| Drain cm | 3.2 |
ADDITIONAL FEATURES
| Ambient Temperature Operating Range °C | up to -6°C (Heating) up to 52°C (Cooling) |
| Standard Remote Controller | LCD Wireless Type |
| Compressor Type | Twin Rotary |
