Description

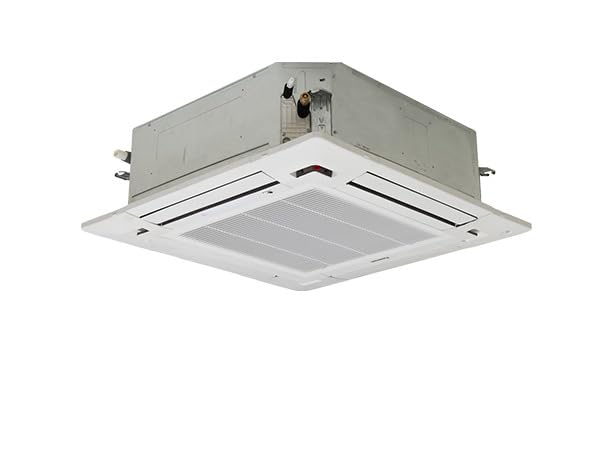

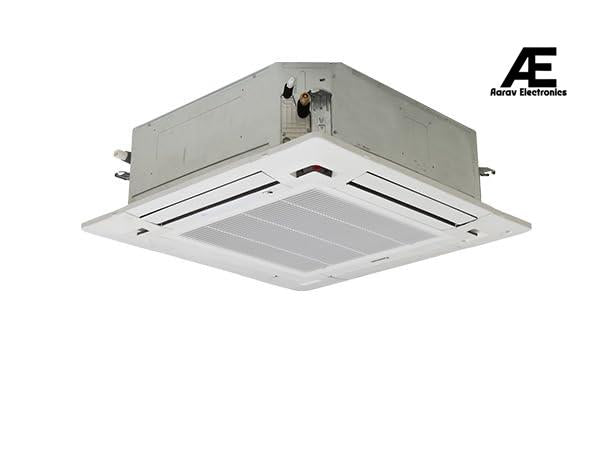

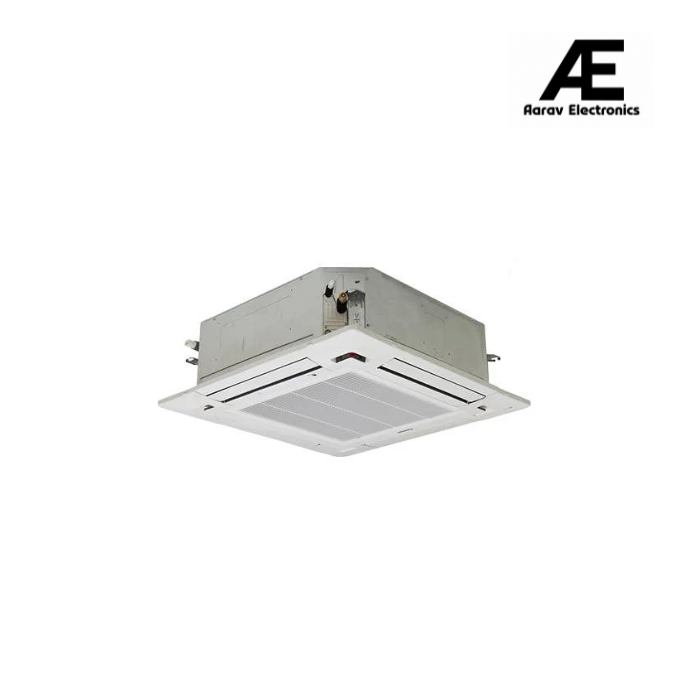

The Panasonic 3 Ton 2 Star Non-Inverter Cassette Air Conditioner (S-36PUB5H59B) is a powerful ceiling-mounted cooling solution designed for large commercial and professional spaces such as offices, banquet halls, retail stores, showrooms, and restaurants. Featuring a 4-way cassette design, it distributes air evenly in all directions for uniform and consistent cooling.
Powered by a Twin Rotary Compressor and eco-friendly R32 refrigerant, this fixed-speed AC delivers high cooling performance of up to 10,600 W (36,169 BTU/h). It is built to operate reliably even in extreme ambient temperatures up to 50°C. The unit comes with a digital wireless LCD remote, easy-maintenance display, and a durable Superdyma Outdoor Unit (ODU) for long-lasting performance.
Specifications
GENERAL INFORMATION
| Model Indoor Unit | S-36PUB5H59B |
| Model Outdoor Unit | U-36PNB5H59 |
| Panel | CZ-KPUB5H9 |
| Capacity Rated Cooling W | 10600 |
| Capacity Rated Cooling Btu/hr | 36169 |
| ISEER | 3.12 |
| Star Rating | 2 Star |
| Electrical Rating Cooling Running Current (A) | 15.0 |
| Electrical Rating Cooling Power Input (W) | 3400 |
| Power Source V/Phase/Hz | 230V / 1ɸ / 50Hz |
INDOOR UNIT
| Air Volume H/M/L (CMH) | 2200/2050/1950 |
| Sound Pressure Level H/M/L dB(A) | 53/51/50 |
| Dimension Indoor LxBxH (cm) | 84.5 x 84.5 x 29.0 |
| Dimension Panel LxBxH (cm) | 95.0 x 95.0 x 4.2 |
| Net Weight Indoor Unit / Panel (kg) | 26.2/5.5 |
OUTDOOR UNIT
| Sound Pressure Level dB(A) | 63 |
| Dimension LxBxH (cm) | 103.2 x 38.3 x 79.1 |
| Net Weight Kg | 69.5 |
| Refrigerant Type | R-32 |
PIPING CONNECTION
| Gas (Flare) cm (inches) | 1.588 (5/8") |
| Liquid (Flare) cm (inches) | 0.952 (3/8”) |
| Drain cm | 3.2 |
ADDITIONAL FEATURES
| Ambient Temperature Operating Range °C | up to 50°C |
| Standard Remote Controller | LCD Wireless Type |
| Compressor Type | Twin Rotary |
