Description

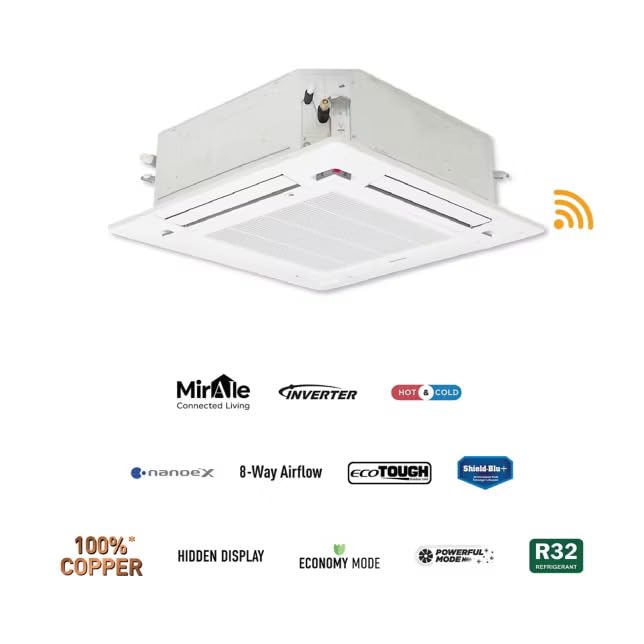

The Panasonic 2 Ton 4 Star Hot & Cold Inverter Cassette AC (S-24PUY7H5YD) is a premium commercial air-conditioning solution designed for offices, showrooms, hospitals, hotels, and large indoor spaces. Equipped with 4-way cooling, Hot & Cold operation, and Twin Rotary Inverter Compressor, this AC ensures fast, uniform, and energy-efficient temperature control throughout the year.
With IoT (Wi-Fi) connectivity, you can control the AC remotely via smartphone or voice assistant. The advanced nanoe™ X Active Air Purification Technology inhibits viruses, bacteria, allergens, and odors, delivering cleaner and healthier indoor air. Built for tough conditions, it operates reliably from -6°C to 52°C, while the Shield Blue coated ODU coils and Superdyma Outdoor Unit enhance durability and long-term performance. Backed by strong warranties on PCB, compressor, and casing, this cassette AC is ideal for heavy-duty professional use.
Specifications
GENERAL SPECIFICATIONS
| Model Indoor Unit | S-24PUY7H5YD |
| Model Outdoor Unit | U-24PZY7H5Y |
| Panel | CZ-KPUB6H9 |
| Capacity Rated Cooling W [Min. ~ Max.] | 6500 (3000-7000) |
| Capacity Rated Cooling Btu/hr [Min. ~ Max.] | 22179 (10236-23885) |
| Capacity Rated Heating W [Min. ~ Max.] | 6500 (3000-7000) |
| Capacity Rated Heating Btu/hr [Min. ~ Max.] | 22179 (10236-23885) |
| ISEER | 4.65 |
| Star Rating | 3 Star |
| Electrical Rating Cooling Running Current A [Rated ~ Max.] | 8.1~13 |
| Electrical Rating Cooling Power Input W [Min. ~ Max.] | 1800 (600-2050) |
| Electrical Rating Heating Running Current A [Rated ~ Max.] | 6.8~12.5 |
| Electrical Rating Heating Power Input W [Min. ~ Max.] | 1550 (500-1750) |
| Power Source (V/Phase/Hz) | 230V / 1ɸ / 50Hz |
INDOOR UNIT
| Air Volume H/M/L (CMH) | 1350/1200/1100 |
| Sound Pressure Level H/M/L dB(A) | 45/43/41 |
| Dimension Indoor LxBxH (cm) | 84.5 x 84.5 x 24.5 |
| Dimension Panel LxBxH (cm) | 95.0 x 95.0 x 4.2 |
| Net Weight Indoor Unit / Panel (Kg) | 25/5.5 |

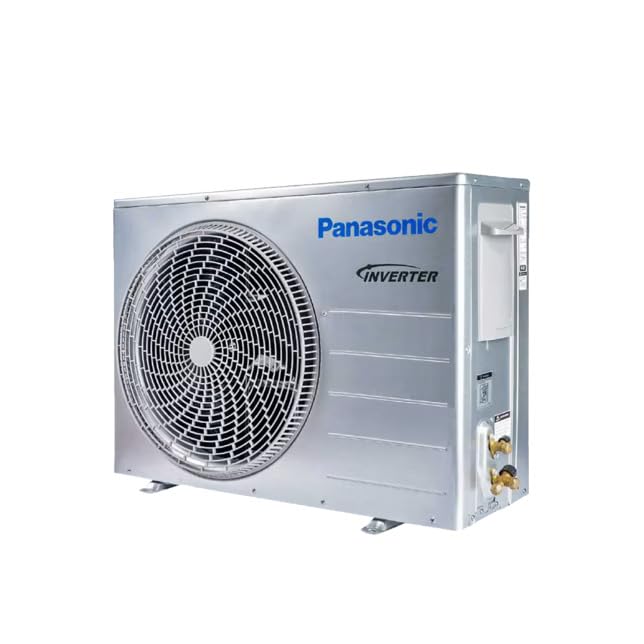

OUTDOOR UNIT
| Sound Pressure Level dB(A) | 57 |
| Dimension LxBxH (cm) | 82.4 x 29.9 x 61.9 |
| Net Weight Kg | 34.5 |
| Refrigerant Type | R-32 |
PIPING CONNECTION
| Gas (Flare) cm (inches) | 1.588 (5/8") |
| Liquid (Flare) cm (inches) | 0.635 (1/4") |
| Drain cm | 3.2 |
ADDITIONAL INFORMATION
| Ambient Temperature Operating Range °C | up to -6°C (Heating) up to 52°C (Cooling) |
| Standard Remote Controller | LCD Wireless Type |
| Compressor Type | Twin Rotary |
