Description

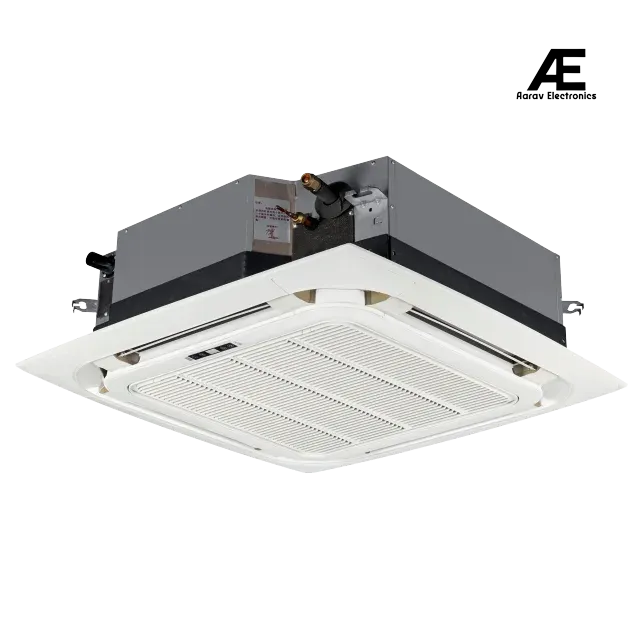

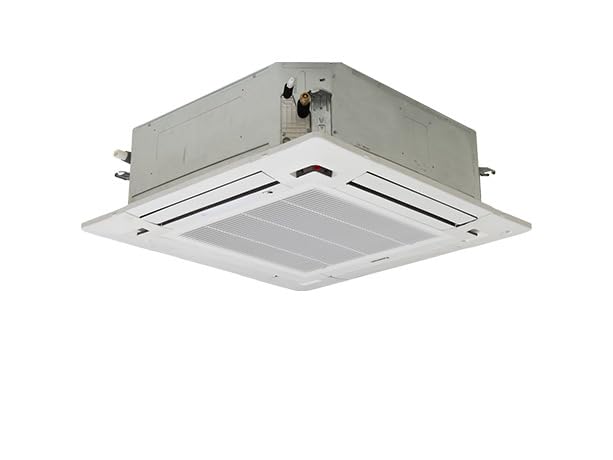

The Panasonic 2.0 Ton Cassette AC (S-24PUB5H59B) is a powerful inverter-based, 5 Star rated commercial air conditioner designed for offices, showrooms, restaurants, and large spaces. With a high cooling capacity of 6.5 kW and 360° uniform airflow, this cassette AC ensures fast, consistent, and comfortable cooling across every corner of the room.
Built for Indian conditions, it supports an operation range up to 50°C, making it ideal for extreme summers. Features like Economy Mode, Auto Restart, Built-in Drain Pump, and 3D Blade Fan enhance efficiency, convenience, and performance. Its flexible installation design and easy maintenance access make it a reliable and long-term cooling solution for commercial environments.
Specifications
GENERAL SPECIFICATION
| Model Indoor Unit | S-24PUB5H59B |
| Model Outdoor Unit | U-24PNB5H59 |
| Panel | CZ-KPUB5H9 |
| Capacity Rated Cooling | 6500 W |
| ISEER | 4.0 |
| Star Rating | 2 Star |
ELECTRICAL RATING
| Cooling Running Current (A) | 7.07 |
| Cooling Power Input (W) | 1625 |
POWER SOURCE
| V/Phase/Hz | 230V / 1ɸ / 50Hz |
INDOOR UNIT
| Air Volume | 1350/1100/1000 H/M/L (CMH) |
| Sound Pressure Level | 45/43/41 H/M/L dB(A) |
| Dimension Indoor LxBxH (cm) | 84.5 x 84.5 x 24.5 |
| Dimension Panel LxBxH (cm) | 95.0 x 95.0 x 4.2 |
| Net Weight Indoor Unit / Panel (kg) | 24.7/5.5 |
OUTDOOR UNIT
| Sound Pressure Level dB(A) | 60 |
| Dimension LxBxH (cm) | 85.0 x 31.0 x 68.4 |
| Net Weight Kg | 44.0 |
| Refrigerant Type | R-32 |
PIPING CONNECTION
| Gas (Flare) cm (inches) | 1.588 (5/8") |
| Liquid (Flare) cm (inches) | 0.635 (1/4") |
| Drain cm | 3.2 |
ADDITIONAL FEATURE
| Ambient Temperature Operating Range °C | up to 50°C |
| Standard Remote Controller | LCD Wireless Type |
| Compressor Type | Rotary |
