Description

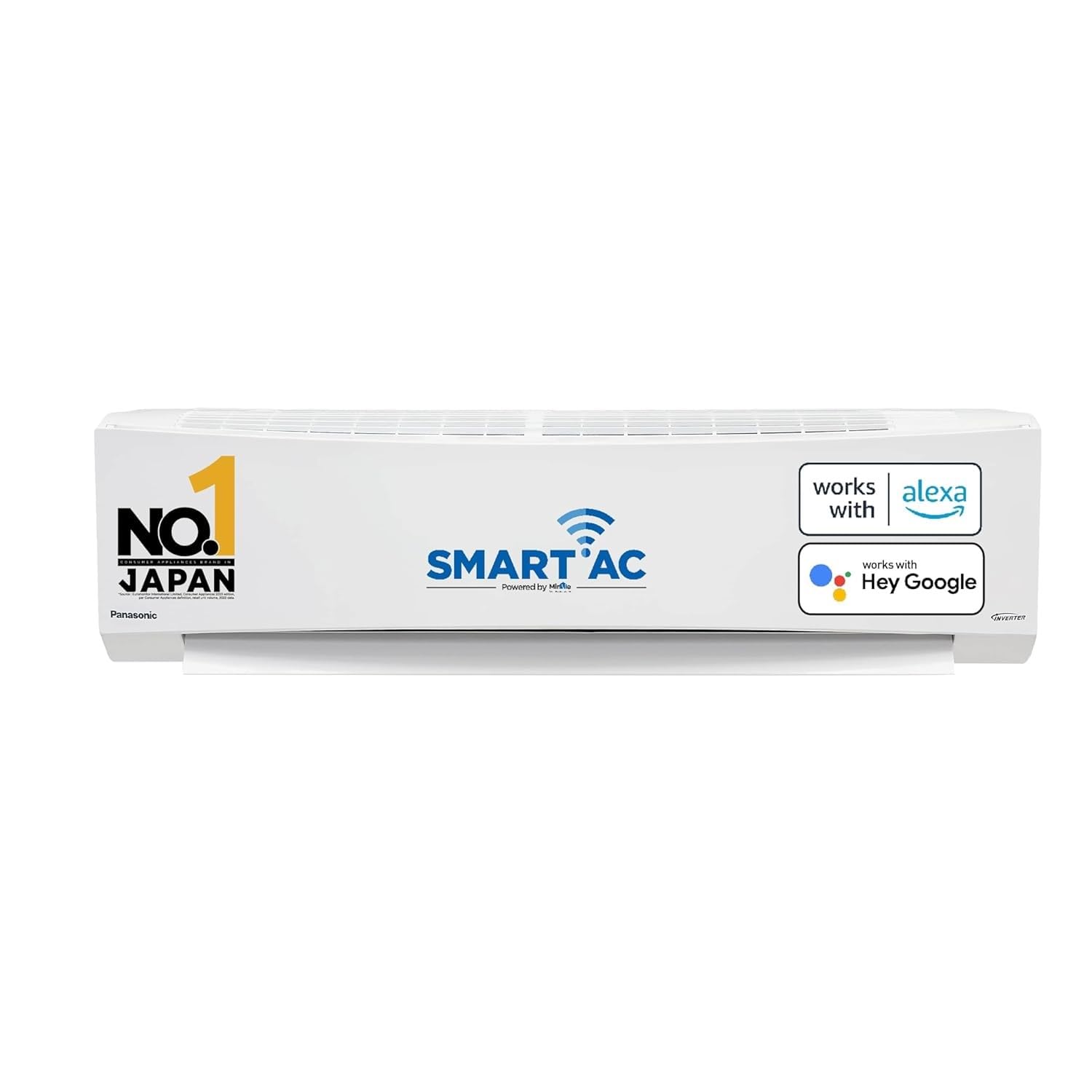

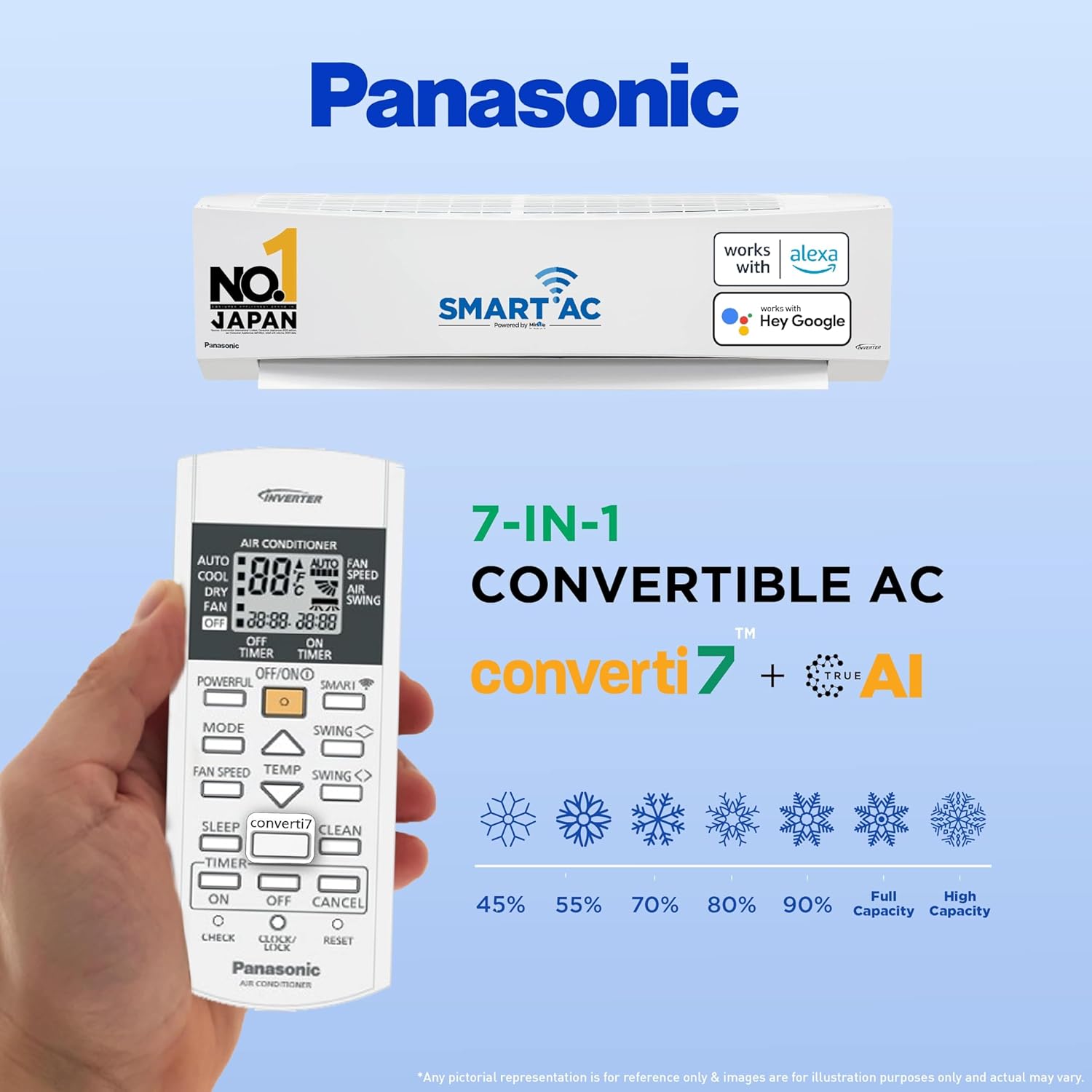

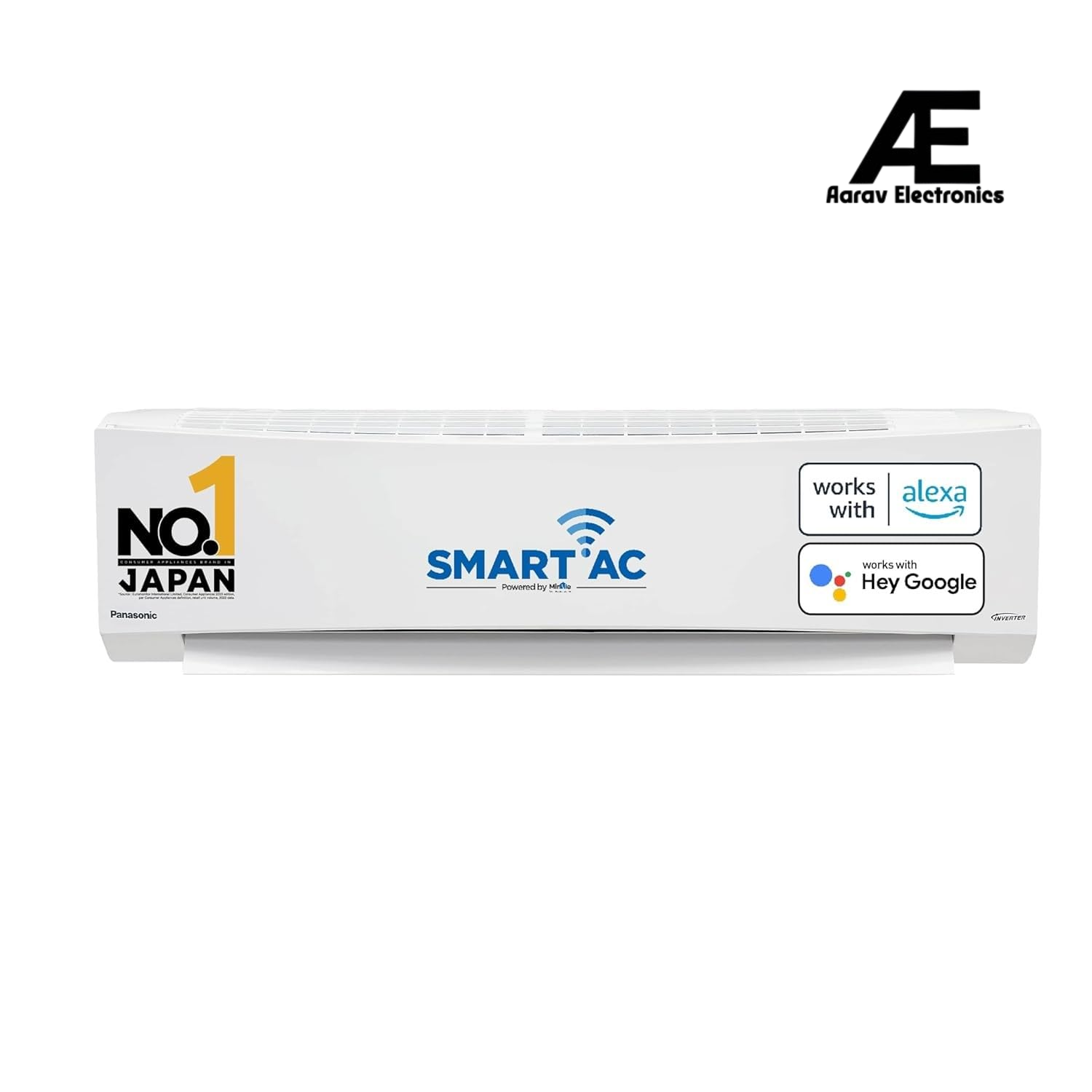

The Panasonic 1 Ton Smart Inverter Split Air Conditioner is designed for efficient cooling in small rooms (up to 120 sq. ft.) while delivering intelligent performance and energy savings. Equipped with 7-in-1 Convertible Modes with True AI (Converti7), the AC automatically detects room temperature and usage patterns to adjust cooling capacity and fan speed for optimum comfort. You can also manually select cooling levels from 40% to 90%, Full Capacity, or High Capacity as per your needs.
This AC is also a Smart Wi-Fi enabled model, allowing you to control temperature, modes, and schedules directly from the Miraie App, along with hands-free voice control using Alexa and Google Assistant. The PM 0.1 air purification filter ensures healthier indoor air by trapping ultra-fine dust and pollutants, while the 100% copper condenser provides faster cooling and long-lasting durability.
Specifications
GENERAL INFORMATION
| Type | Cooling Only |
| Tonnage Class (TR) | 1.0 |
| Model [50Hz] | CS/CU-NU12ZKY4W |
| Cooling Capacity Standard [Min. - Max.] (Btu/h) | 11942 [5374 - 13136] |
| Cooling Capacity Standard [Min. - Max.] (W) | 3500 [1575 - 3850] |
| ISEER | 4.50 |
| Annual Power Consumption (kWh) | 601.50 |
| Star Rating | 4 |
| Moisture Removal Rate (l/h) | 1.0 |
| Moisture Removal Rate (Pt/h) | 2.1 |
| Air Circulation (Indoor) (mᵌ/min) | 12.0 |
| Air Circulation (Indoor) (ftᵌ/min) | 424 |
| Refrigerant | R-32 |
| Operating Temp. Range (℃) | 16 ~ 52 |
| Operating Volt. Range (V) | 100-290 |
| Power Supply Source | Indoor |
ELECTRICAL DATA
| Voltage (V-AC) | 230 |
| Frequency (Hz) | 50 |
| Phase (Φ) | Single Phase |
| Running Current (A) | 4.6 |
| Power Input, Standard Cooling [Min. - Max.] (W) | 1005 [320 - 1357] |

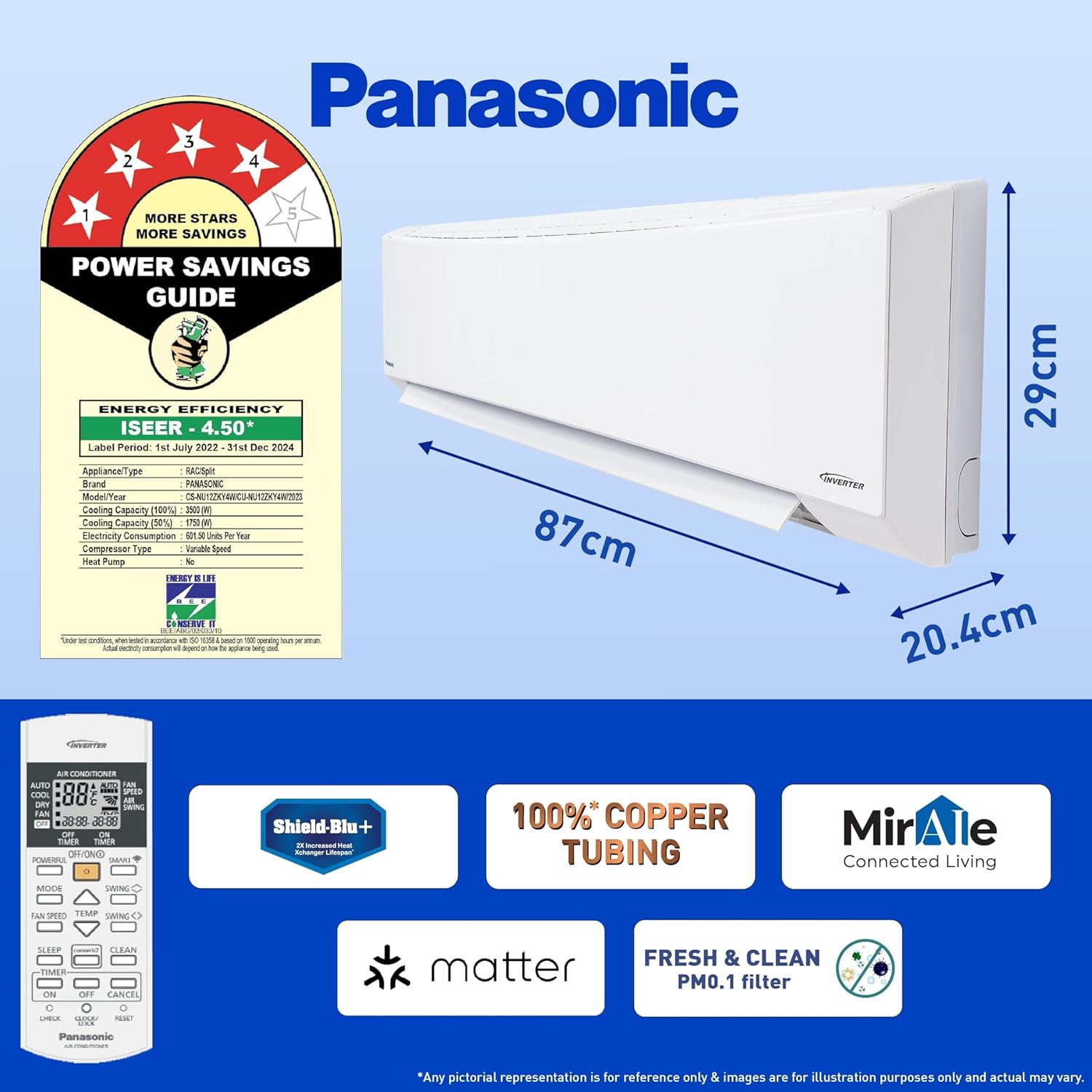

DIMENSIONS OF THE INDOOR UNIT
| Length (L) (cm) | 87.0 |
| Breadth (B) (cm) | 20.4 |
| Height (H) (cm) | 29.0 |

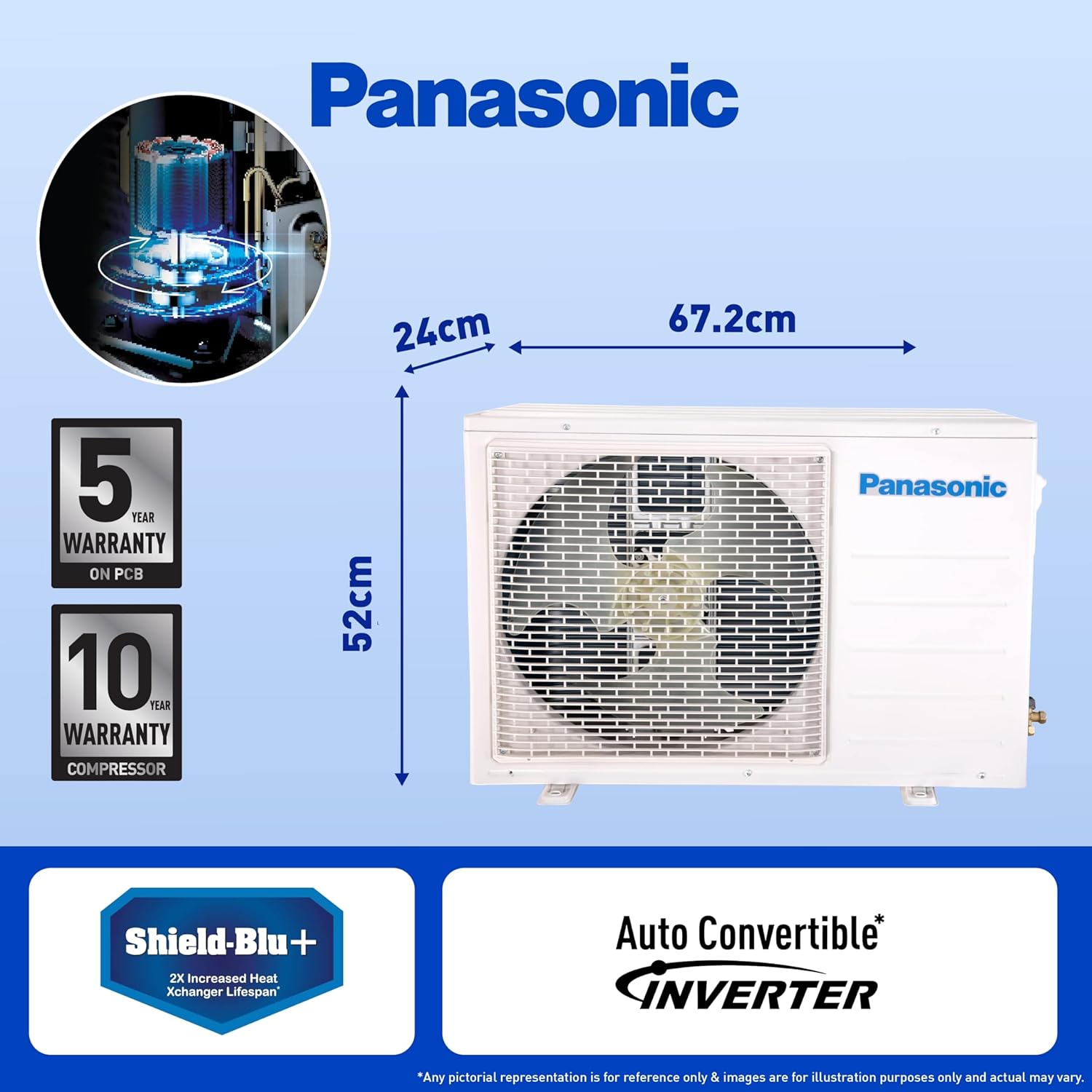

DIMENSIONS OF THE OUTDOR UNIT
| Length (L) (cm) | 67.2 |
| Breadth (B) (cm) | 24.0 |
| Height (H) (cm) | 52.0 |
NOISE LEVEL
| Indoor (H/Q) [dB-A] | 45/36 |
| Outdoor [dB-A] | 53 |
NET WEIGHT
| IDU [ODU] (kg) | 9 [22] |
| IDU [ODU] (lb) | 19.8 [48.5] |
GROSS WEIGHT
| IDU [ODU] (kg) | 10 [25] |
| IDU [ODU] (lb) | 22 [55.1] |
REFRIGERANT PIPE DIAMETER
| Liquid Side (cm) | Ø0.635 |
| Gas Side (cm) | Ø0.952 |
PIPE EXTENSION
| Chargeless Pipe Length * (m) | 7.5 |
| Maximum Pipe Length * (m) | 10 |
| Maximum Elevation Length * (m) | 5 |
| Additional Refrigerant Gas * (g/m) | 10 |
