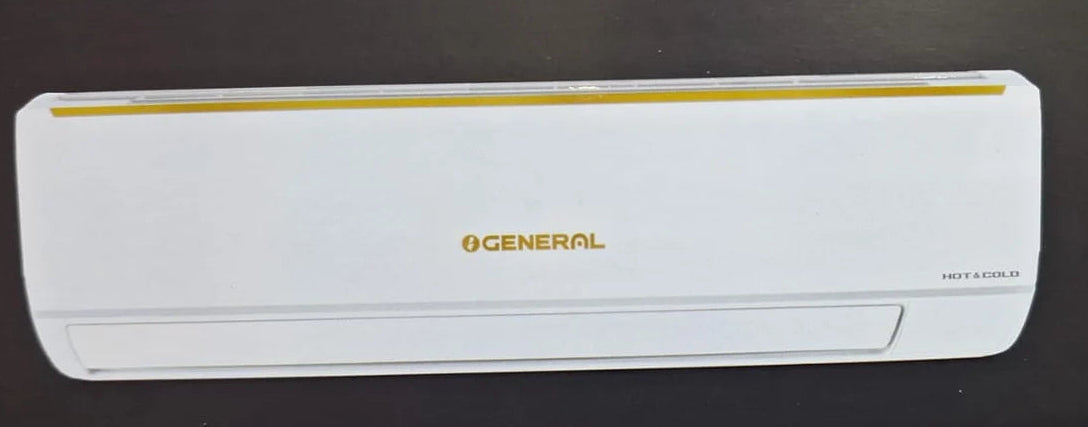

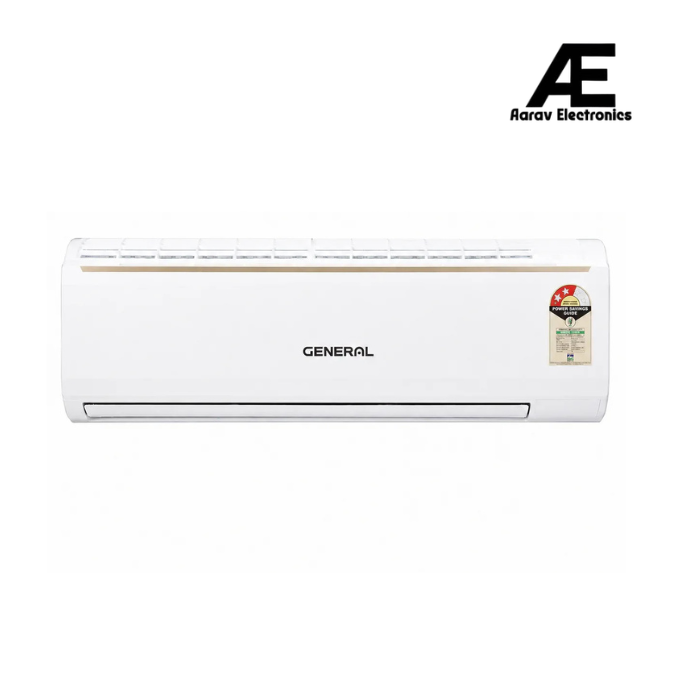

O General ASGA14NMWA-B is a 1.12-ton, 2 Star fixed-speed hot & cold split air conditioner from the NMW Series. It offers 3950 W rated cooling capacity and 3400 W heating capacity, with a Tropical Rotary Compressor designed for operation in ambient temperatures up to 52°C.
The AC uses R32 refrigerant and copper heat exchangers and includes features such as Powerful Mode, Coanda Airflow, 3D airflow, Dry Function, Sleep Timer, Auto Restart and self-diagnosis. Its operating voltage range is 207–253 V, making it suitable for locations with moderate voltage fluctuations.
| Capacity | 1.12 Ton |
| Tonnage | 1.09 TR |
| Product Type | Hot & Cold Split AC |
| Cooling Capacity | 3950 W |
| Heating Capacity | 3400 W |
| Compressor | Tropical Rotary |
| Refrigerant | R32 |
| Evaporator Coil | Copper |
| Condenser Coil | Copper |
| Airflow | 1,100 m³/h Powerful Mode |
| Maximum Airflow Distance | 10 m |
| Fan Speed Levels | 6 |
| Airflow Type | 3D / Double Swing |
| Powerful Mode | Yes |
| Dry Function | Yes |
| Cooling Temperature Range | 18°C – 52°C |
| Heating Temperature Range | 0°C – 24°C |
| Operating Voltage Range | 207 V – 253 V |
| Dimensions (H × W × D) | 295 × 1000 × 230 mm |
| Net Weight | 11 kg |
| Quiet Mode Noise Level – Cooling | 34 dB(A) |
| Quiet Mode Noise Level – Heating | 35 dB(A) |
| Dimensions (H × W × D) | 594 × 810 × 301 mm |
| Net Weight | 38 kg |
| Outdoor Unit Type | Powder Coated |
| Corrosion Protection | Yes |
