Description
| Type (Cooling) |
|---|
| Indoor Unit |

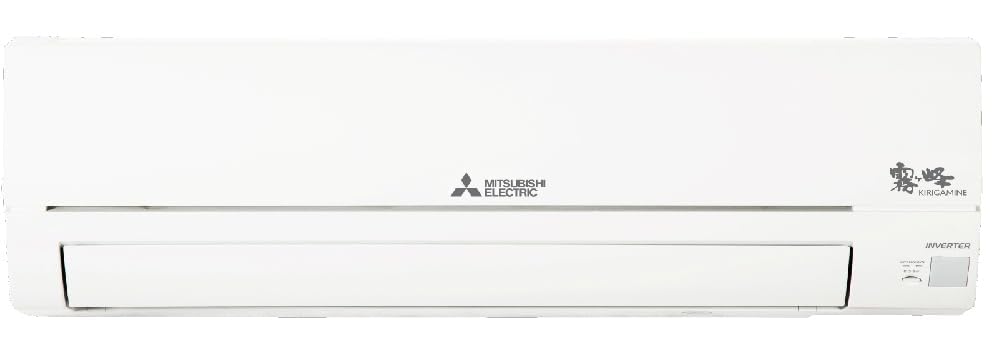

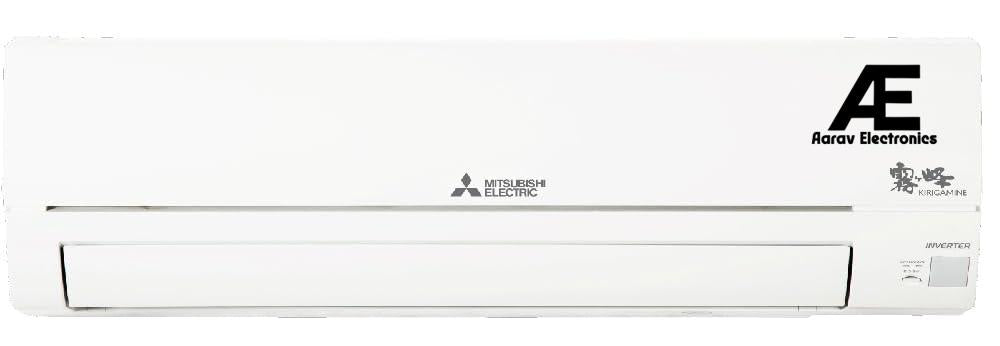

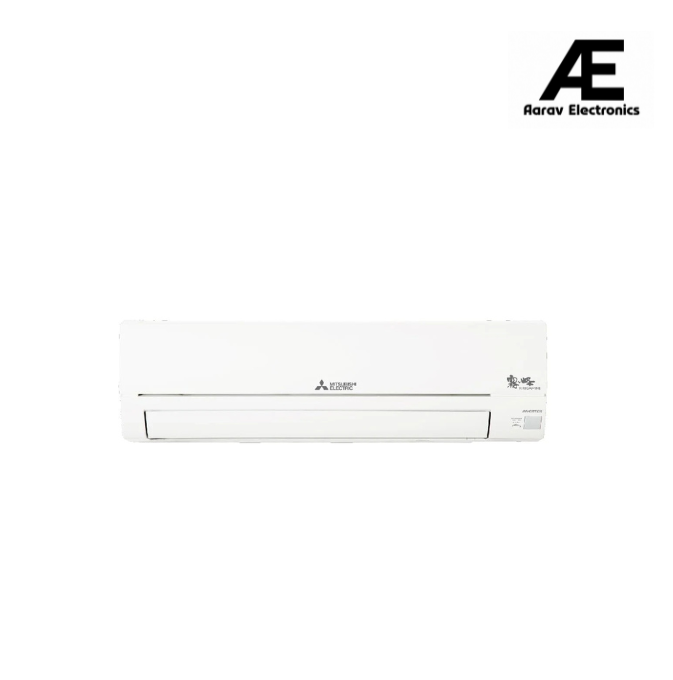

| MSY-JS18VF |
| Outdoor Unit |
| MUY-JS18VF |
| Performance Parameters | |
|---|---|
| Capacity (Tr) | 1.5 Tr |
| Star Rating - As Per BEE | 3 Star |
| Power Supply | 230 V / 50 Hz / Single Phase |
| Capacity (Rated Min-Max) | 5.2 (1.5-5.7)kW |
| Total Input (Rated Min-Max) | 1.68 (0.35-2.04)kW |
| ISEER | 4.23 |
| Operating Current Rated(A) | 7.5 |
| Air Volume (CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) | 230/297/392/459/569 |
| Dimensions & Weight | |||
|---|---|---|---|
| Indoor unit | Dimensions (H x W x D) | mm | 305x923x262 |
| Weight | kg | 11.5 | |
| Outdoor unit | Dimensions (H x W x D) | mm | 550x800x285 |
| Weight | kg | 31.5 | |
| Ext.Piping | Diameter Liquid | mm (inches) | 6.35(1/4) |
| Diameter Gas | mm (inches) | 12.7(1/2) | |
| Max.Length Out-In | m | 20 | |
| Max.Height Out-In | m | 12 | |
