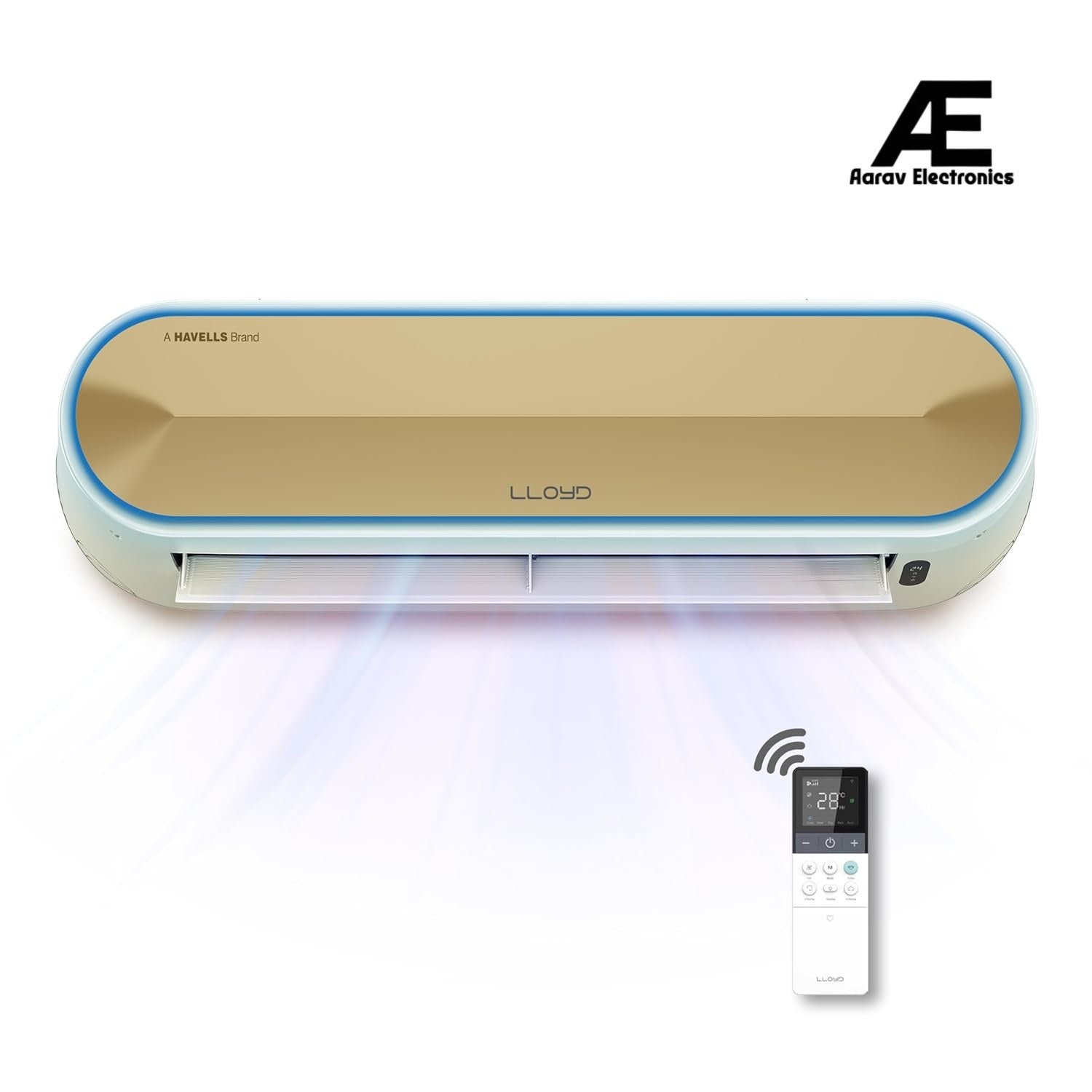

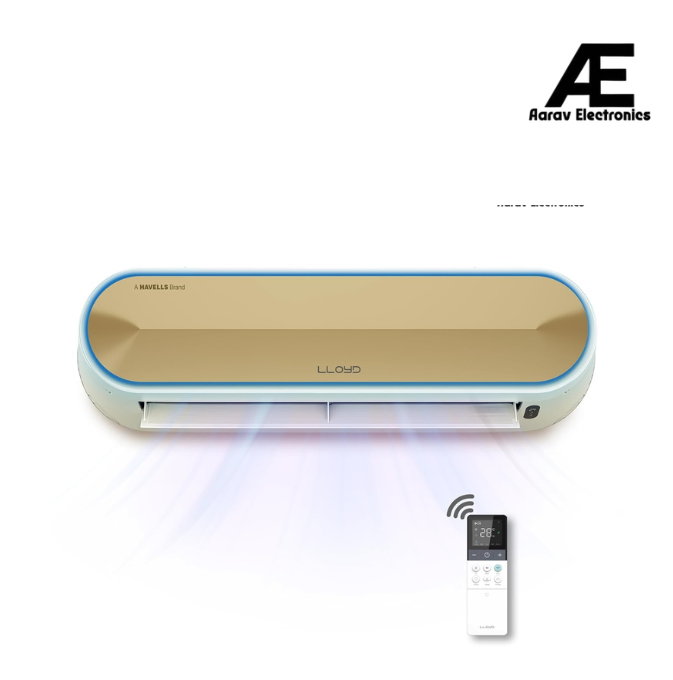

This premium split air conditioner from Havells India Ltd. is designed for superior energy efficiency and high-performance cooling. With an impressive ISEER rating of 5.20 and a 5-star energy rating, it significantly reduces electricity consumption while delivering powerful cooling. Its cooling capacity of 5100 W makes it ideal for rooms up to 15.8 m², while the strong airflow of 1040 m³/h and long air throw distance of 18 meters ensure uniform cooling across the space. Built to perform in extreme Indian conditions, it operates efficiently even at temperatures up to 52°C and supports a wide voltage range of 100V–300V for uninterrupted performance.
The AC also focuses on comfort and durability, featuring low indoor noise levels of just 30 dB for a peaceful environment. It uses eco-friendly R-32 refrigerant and a reliable rotary compressor for efficient and sustainable operation. With lower annual electricity consumption (759.37 kWh) compared to standard models, it offers long-term savings. The unit comes with a complete installation kit and is built with high-quality components, making it a dependable choice for modern homes.
| Manufactured By | Havells India Ltd. |
| Country Of Origin | India |
| Refrigerant | Rotary / R-32 |
| Comp. Type | Rotary |
| Star Rating | 5 Star |
| AC Type | Split Air Conditioner |
| ISEER | 5.20 |
| ODU Noise (dB) | 57 dB |
| IDU Noise (dB) | 30 dB |
| Air Flow (m³/h) | 1040 m³/h |
| Input Power (W) | 1240 W / 457 W |
| Input Power (100 % / 50 %) | 1240 W / 457 W |
| Input Current (100 % / 50 %) - Cooling | 5.45 A / 2.84 A |
| Annual Electricity Consumption | 759.37 kWh |
| Cooling Capacity (100 % / 50 %) | 5100 W / 2550 W |
| Cooling Capacity (W) | 5100 W / 2550 W |
| Input current (A) | 5.31 A / 2.85 A |
| Power Supply (V / Hz / Phase) | 230 V - 50 Hz - 1 Phase |
| Electricity Consumption | 759.37 kWh |
| ODU Net / Gross Weight (kg) | 29.0 kg / 33.8 kg |

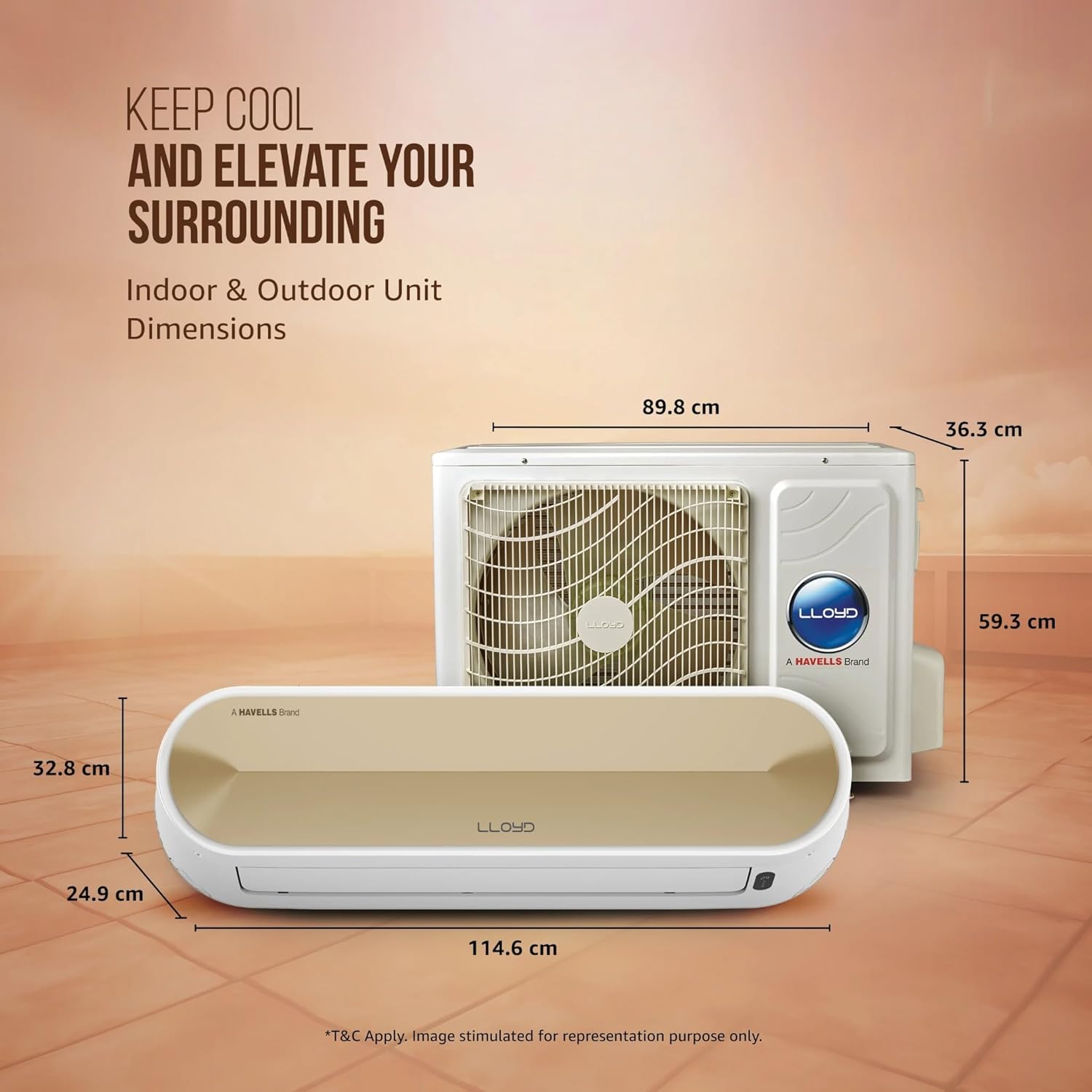

| ODU Dimension (L×W×H) | 89.8 cm x 36.3 cm x 59.3 cm |
| ODU Packing (LxBxH) | 94.5 cm x 44.0 cm x 64.0 cm |
| IDU Net / Gross Weight | 11.8 kg / 16.5 kg |
| IDU Dimensions (LxBxH) as per SOWM Label | 114.6 cm x 32.8 cm x 24.9 cm |
| IDU Packing (LxBxH) | 121.5 cm x 41.7 cm x 34.7 cm |
| IDU Dimension (L×W×H) | 114.6 cm x 24.9 cm x 32.8 cm |
| Area Coverage | 15.8 m² |
| Air Throw Distance | 18 m |
| Operating Voltage Range | 100 V - 300 V |
| Operating Temperature Range | 16 °C ~ 52 °C |

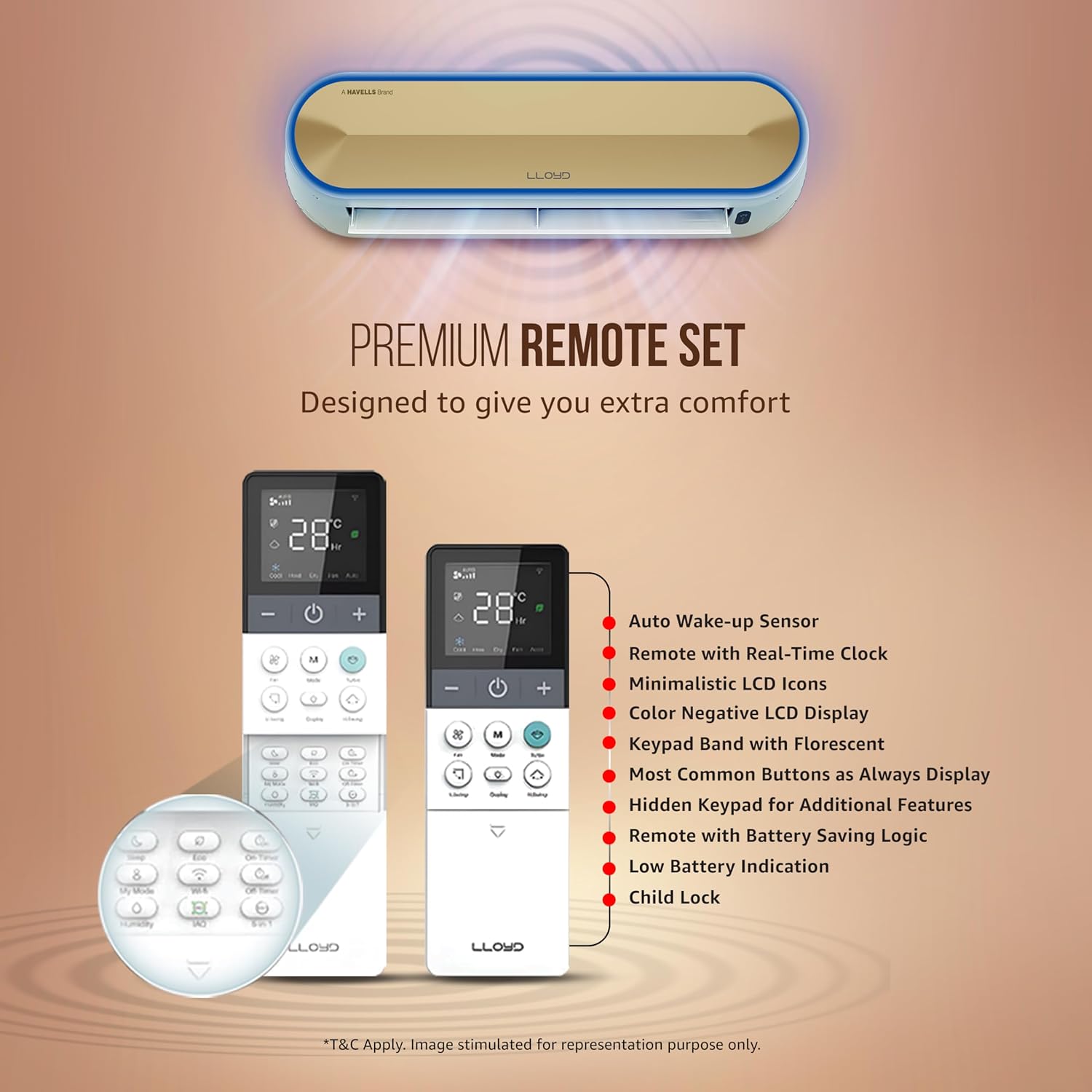

| Net Contents | 1 Indoor Unit, Remote & Batteries, User Manual, Drain Pipe, Installation Accessory Kit, 3 m Connecting Copper Wire, 1 Warranty Card and 1 Outdoor Unit with Installation Pipe |
