The Havells Split Air Conditioner is designed to deliver powerful cooling with superior energy efficiency for medium to large rooms. With a cooling capacity of 5200 W (1.5 Ton approx.) and a high ISEER rating of 5.35, this AC ensures fast and consistent cooling while minimizing electricity consumption. Built with a rotary compressor and inverter technology, it offers smooth operation, reduced noise levels, and long-term durability. Its wide operating voltage range (100V–300V) allows stable performance even during voltage fluctuations, eliminating the need for a stabilizer.
Engineered for comfort and performance, this AC features strong airflow of 1040 m³/h and an impressive air throw distance of up to 18 meters, ensuring uniform cooling across the room. With low indoor noise levels of just 30 dB, it provides a quiet and comfortable environment. Designed for Indian conditions, it operates efficiently even in high temperatures up to 60°C. Combined with energy-saving performance, durable build, and user-friendly installation kit, this Havells AC is a reliable solution for everyday cooling needs.
| Manufactured By | Havells India Ltd. |
| Country Of Origin | India |
| Refrigerant | Rotary / R-32 |
| Comp. Type | Rotary |

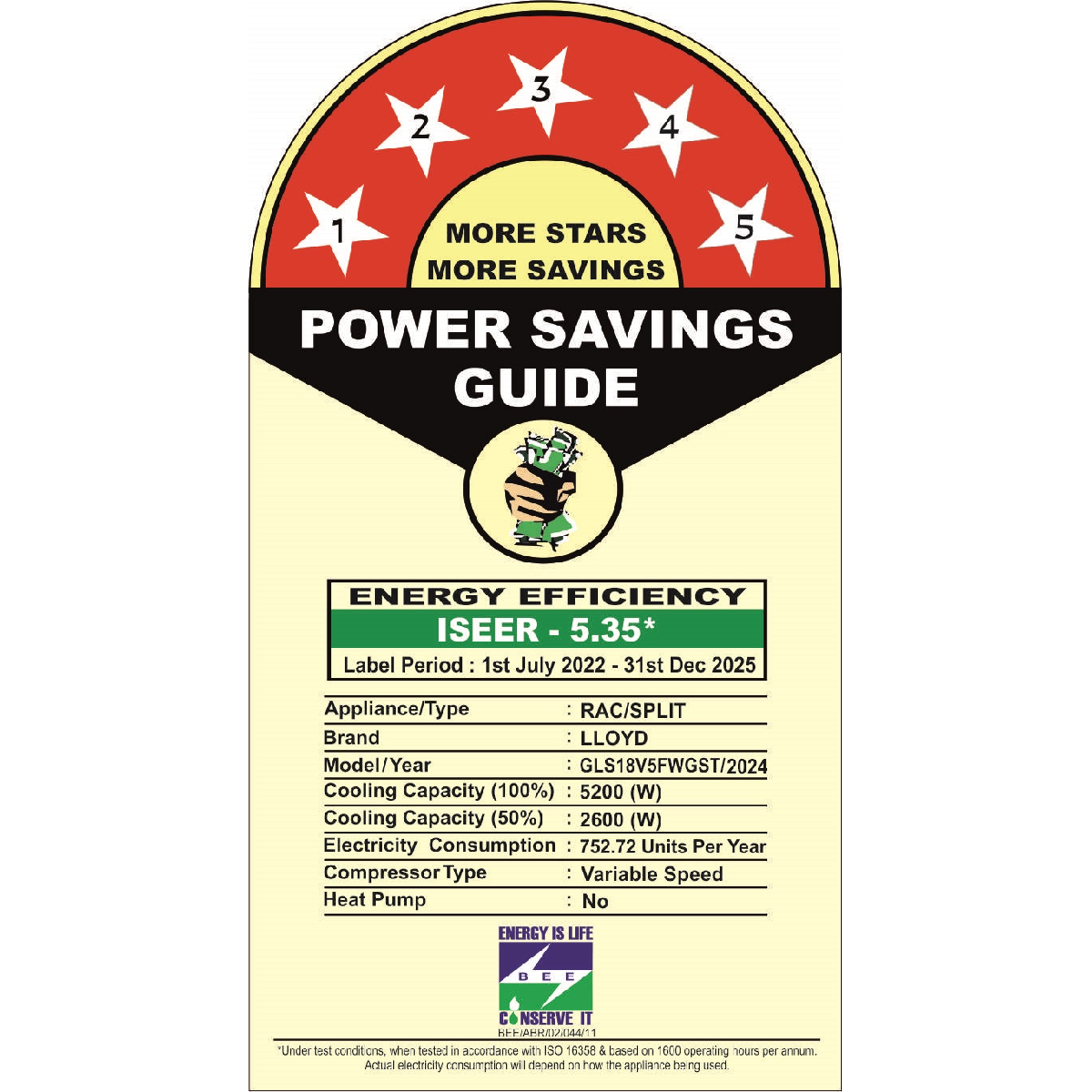

| Star Rating | 5 Star |
| AC Type | Split Air Conditioner |
| ISEER | 5.35 |
| ODU Noise (dB) | 57 dB |
| IDU Noise (dB) | 30 dB |
| Air Flow (m³/h) | 1040 m³/h |
| Input Power (W) | 1210 W / 459 W |
| Input Power (100 % / 50 %) | 1210 W / 459 W |
| Input Current (100 % / 50 %) - Cooling | 5.31 A / 2.85 A |
| Annual Electricity Consumption | 752.72 kWh |
| Cooling Capacity (100 % / 50 %) | 5200 W / 2600 W |
| Cooling Capacity (W) | 5200 W / 2600 W |
| Input current (A) | 5.31 A / 2.85 A |
| Power Supply (V / Hz / Phase) | 230 V - 50 Hz - 1 Phase |
| Electricity Consumption | 752.72 kWh |
| ODU Net / Gross Weight (kg) | 30.6 kg / 35.5 kg |
| ODU Dimension (L×W×H) | 89.8 cm x 36.3 cm x 59.3 cm |
| ODU Packing (LxBxH) | 94.5 cm x 44.0 cm x 64.0 cm |
| IDU Net / Gross Weight | 11.8 kg / 16.5 kg |
| IDU Dimensions (LxBxH) as per SOWM Label | 114.6 cm x 32.8 cm x 24.9 cm |
| IDU Packing (LxBxH) | 121.5 cm x 41.7 cm x 34.7 cm |
| IDU Dimension (L×W×H) | 114.6 cm x 24.9 cm x 32.8 cm |
| Area Coverage | 16.4 m² |
| Air Throw Distance | 18 m |
| Operating Voltage Range | 100 V - 300 V |
| Operating Temperature Range | 16 °C ~ 60 °C |
| Net Contents | 1 Indoor Unit, Remote & Batteries, User Manual, Drain Pipe, Installation Accessory Kit, 3 m Connecting Copper Wire, 1 Warranty Card and 1 Outdoor Unit with Installation Pipe |
