Description
The Daikin FTKR50UV16U 1.5 Ton 5 Star WiFi (IoT) Enabled Inverter Split Air Conditioner is engineered to deliver superior cooling performance, intelligent energy efficiency, and advanced air purification. With a powerful 18,000 BTU cooling capacity and an impressive 5.2 ISEER rating, this AC ensures maximum cooling even at extreme temperatures up to 54°C, maintaining 100% cooling capacity at 46°C. Its annual power consumption of just 785.67 kWh makes it an excellent choice for energy-conscious households.
Powered by Daikin’s patented Swing Compressor and enhanced with Hepta Sensa (7 Sensors), this AC optimizes cooling performance based on room conditions for maximum comfort and durability. The innovative DNNS Self-Heal Coating protects internal components from wear and corrosion, while the PM 2.5 Filter and 3-Stage Air Filtration ensure cleaner indoor air. With Alexa & Google Home voice control, mobile app connectivity, 4-Way Swing, 16-meter air throw, and Triple Display, this AC delivers a truly smart and premium cooling experience.
Specifications
TECHNICAL / FUCNTIONAL SPECIFICATION
| Series | FTKR Series |
| Indoor Model No | FTKR50UV16U |
| Outdoor Model No | RKR50UV16U |
| ISEER / ISEER Rank | 5.2 / Inverter - 5 Star |
| Power supply intake | Outdoor unit |
| Cooling Capacity Rated Full/Half (min~max) (kW) | 5.28 / 2.64 (1.58 ~ 5.75) |
| Cooling Capacity Rated Full/Half (min~max) (Btu/h) | 18,000 / 9,000 (5,390 ~ 19,620) |
| Cooling Capacity @ 46°C (%) | 100 |
| Power consumption (Cooling) Rated Full/Half (min~max) (W) | 1,325 / 460 (267 ~ 1,639) |
| Annual Power Consumption (kWh) | 785.67 |
| Voltage Range (Stabilizer Inside) (V) | 130 - 285 |
| Power Supply (V, Hz) | 1 , 230, 50 |
| Operating Current - Cooling (A) | 6.1 |
| Filters | PM 2.5 Filter |
| Self Diagnosis | Yes |
| Triple Display | IDU Display shows %age Power consumption, Temperature (Set & Room) and Error code |
| Dew Clean Technology | The Dew Clean Technology in the Air Conditioners auto cleans the coil of Indoor Unit heat exchanger. In this function, condensate water volume is used to clean the indoor unit heat exchanger. After cleaning of Indoor Unit heat exchanger, the condensed water drains out the dust particles, bacteria, mold from the indoor unit colil. After completion, unit will automatically switch to driying operation to dry the heat exchanger. |
| Sleep Mode | Yes |
| Timer | Yes |
| Auto Restart | Yes |
| Other Convenience Features | Power airflow dual flaps ; 3D Air flow ; Wide-Angle Louvers ; Vertical auto-swing (up & down) ; New Coanda Airflow ; Power Chill Operation ; Econo Mode ; Smell proof operation ; Auto-Restart after Power Failure, Dew Clean |

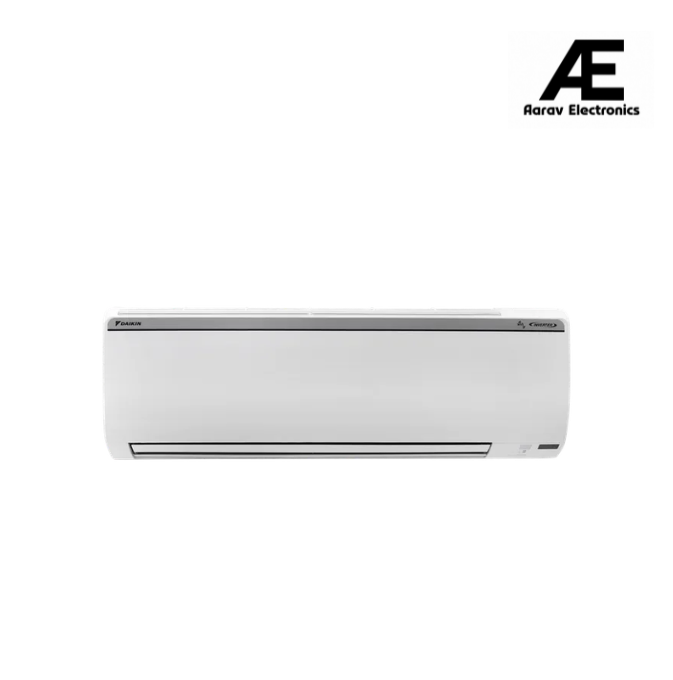

INDOOR UNIT
| Front Panel Colour | White |
| Dimensions (H x W x D) | 298 x 885 x 229 |
| Indoor Net Weight (Kg) | 16.8 |
| Airflow rate (Feet³/min (Cfm)) | 593 |
| Airflow rate (m³/min (Cfm)) | 16.8 |
| Moisture Removal (Liters/Hour) | 1.8 |
| Sound Levels (H / MH / M / ML / L / SL) | 48 / 46 / 43 / 41 / 38 / 32 |
OUTDOOR UNIT
| Dimensions (HxWxD) (mm) | 595 x 845 x 300 |
| Outdoor Net Weight (Kg) | 33 |
| Compressor Type | Swing Compressor |
| Refrigerant | R-32 |
| Breaker size (A) | 20 |
| Piping Length - Charge-less (m) | 10 |
| Piping Length - Max. length (m) | 20 |
| Piping Length - Max. height (m) | 16 |
| Piping Connection (Gas/Liquid) mm (inch) | ∅12.7/∅6.4 (1/2" ; 1/4") |
| Operating Ambient Temperature Range Cooling (Min ~ Max) (°CDB) | 20° ~ 54° |
