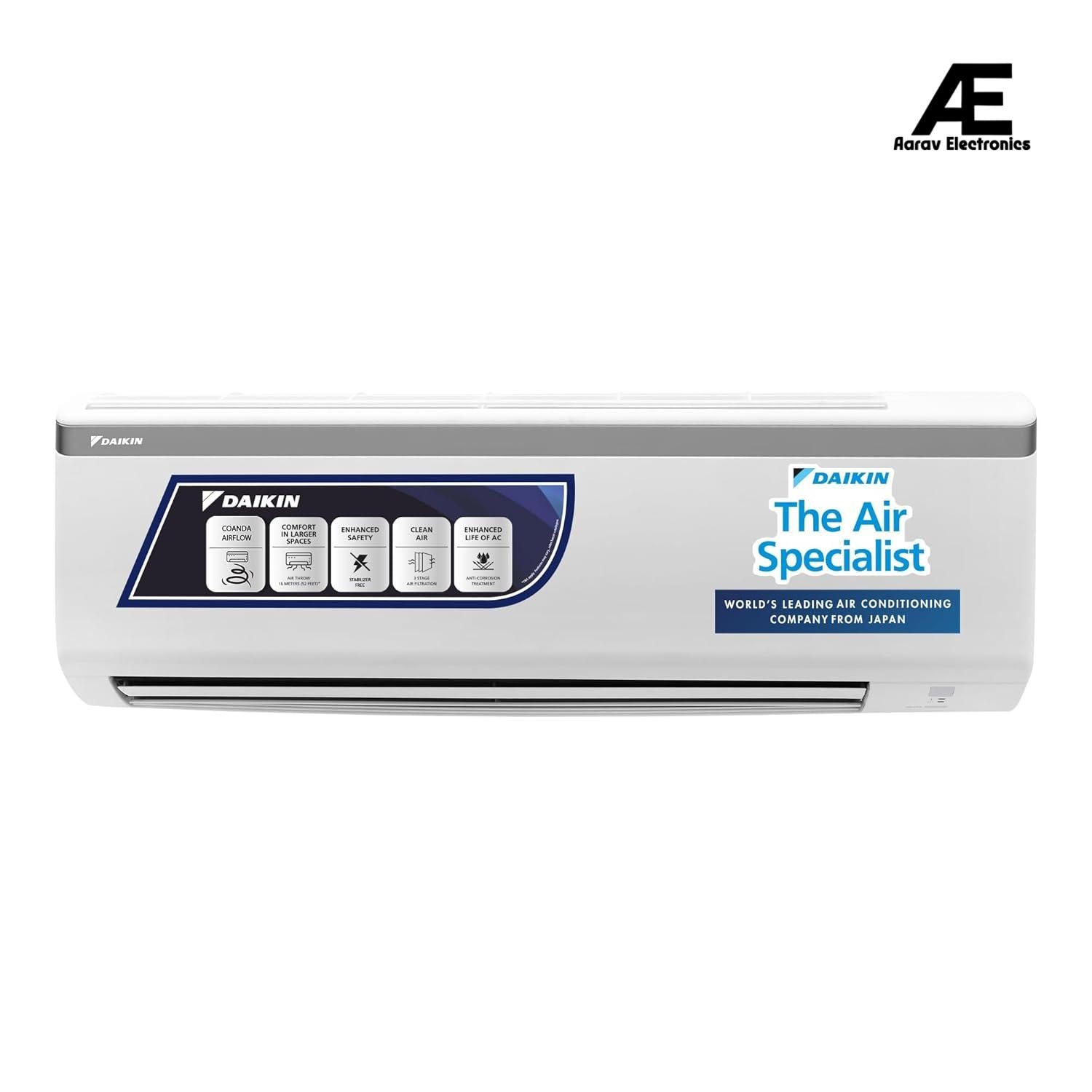

The Daikin 0.8 Ton 3 Star Split Air Conditioner (FTL28UV) is designed for small rooms, study areas, and compact spaces that require efficient and focused cooling. With a 2.8 kW cooling capacity, this AC delivers fast and effective temperature control while maintaining balanced energy consumption. Its 3 Star efficiency rating and SEER value of 3.95 ensure dependable performance for everyday residential use.

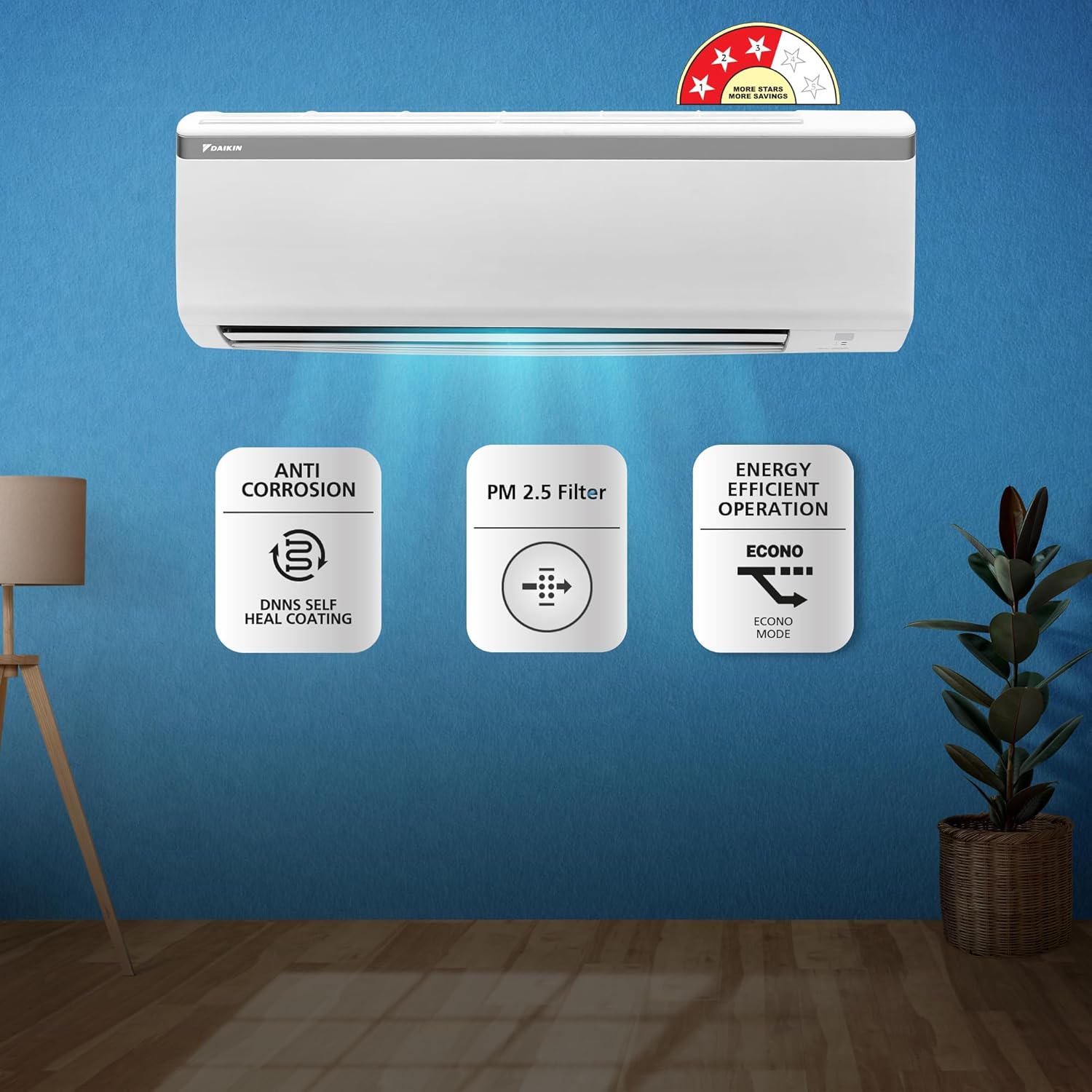

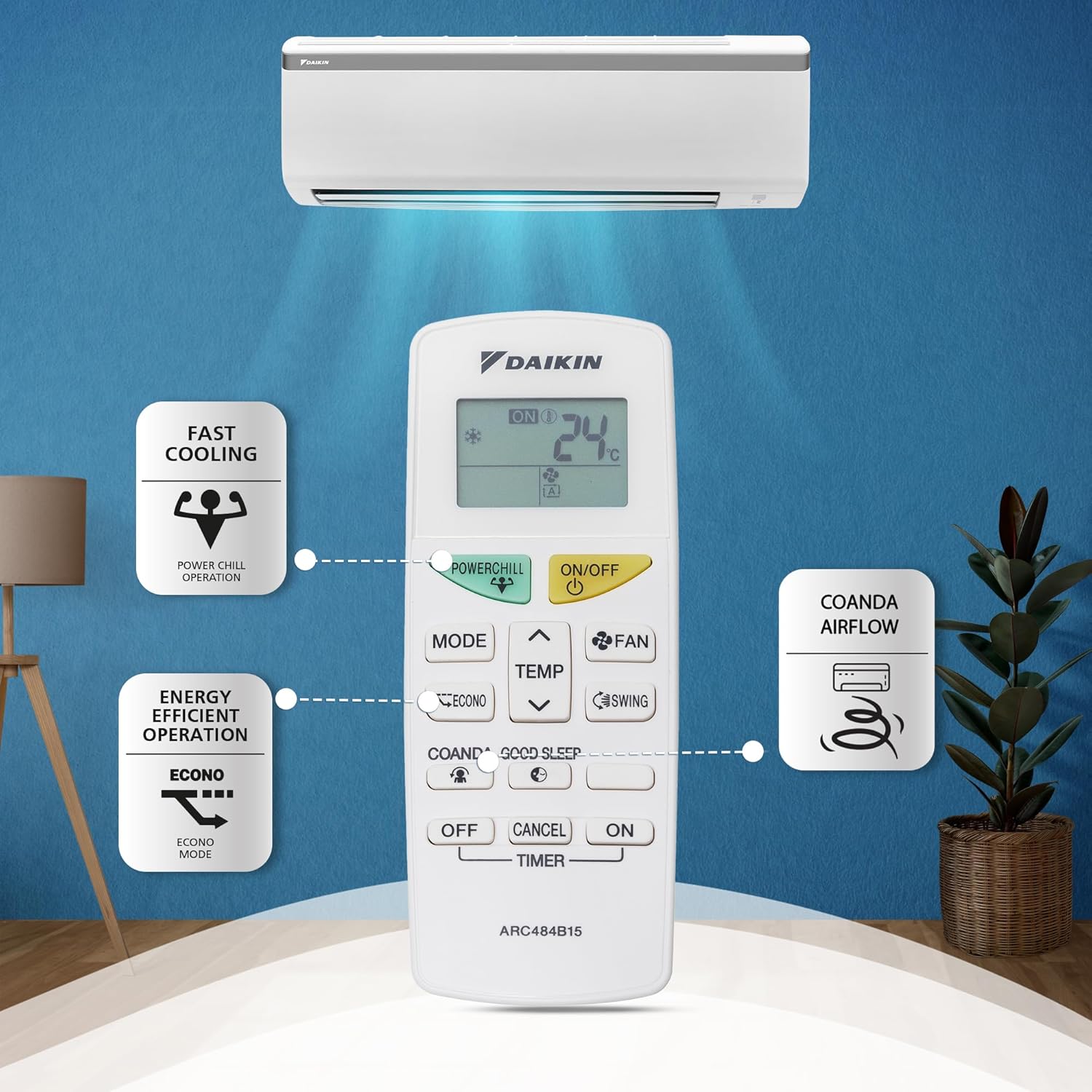

Built with a durable copper condenser and eco-friendly R-32 refrigerant, this AC offers improved heat transfer and long-lasting reliability. Features like Fast Cooling Mode, Dry Mode (Dehumidifier), Self-Diagnosis, and PM 2.5 Air Purification Filter enhance both comfort and air quality. Operating at a low noise level of just 32 dB, it provides quiet and uninterrupted cooling — making it perfect for bedrooms and personal spaces.
| Series | FTL Series |
| Indoor Model No | FTL28UV16W1 |
| Outdoor Model No | RL28UV16W1 |
| Power supply intake | Outdoor unit |
| Cooling Capacity Rated Full/Half (min~max) (kW) | 2.8 |
| Cooling Capacity Rated Full/Half (min~max) (Btu/h) | 9,550 |
| Power consumption (Cooling) Rated Full/Half (min~max) (W) | 709 |
| Annual Power Consumption (kWh) | 548.84 |
| ISEER / ISEER Rank | 3.95 / Non Inverter - 3 Star |
| Power Supply (V, Hz) | 1 , 230, 50 |
| Operating Current - Cooling (A) | 35.18 |
| Filters | PM 2.5 Filter |
| Self Diagnosis | Yes |
| Sleep Mode | Yes |
| Timer | Yes |
| Auto Restart | Yes |
| Other Convenience Features | Power airflow dual flaps ; Wide-Angle Louvers ; Vertical auto-swing (up & down) ; New Coanda Airflow ; Power Chill Operation ; Econo Mode ; Smell proof operation ; Auto-Restart after Power Failure |
| Front Panel Colour | White |

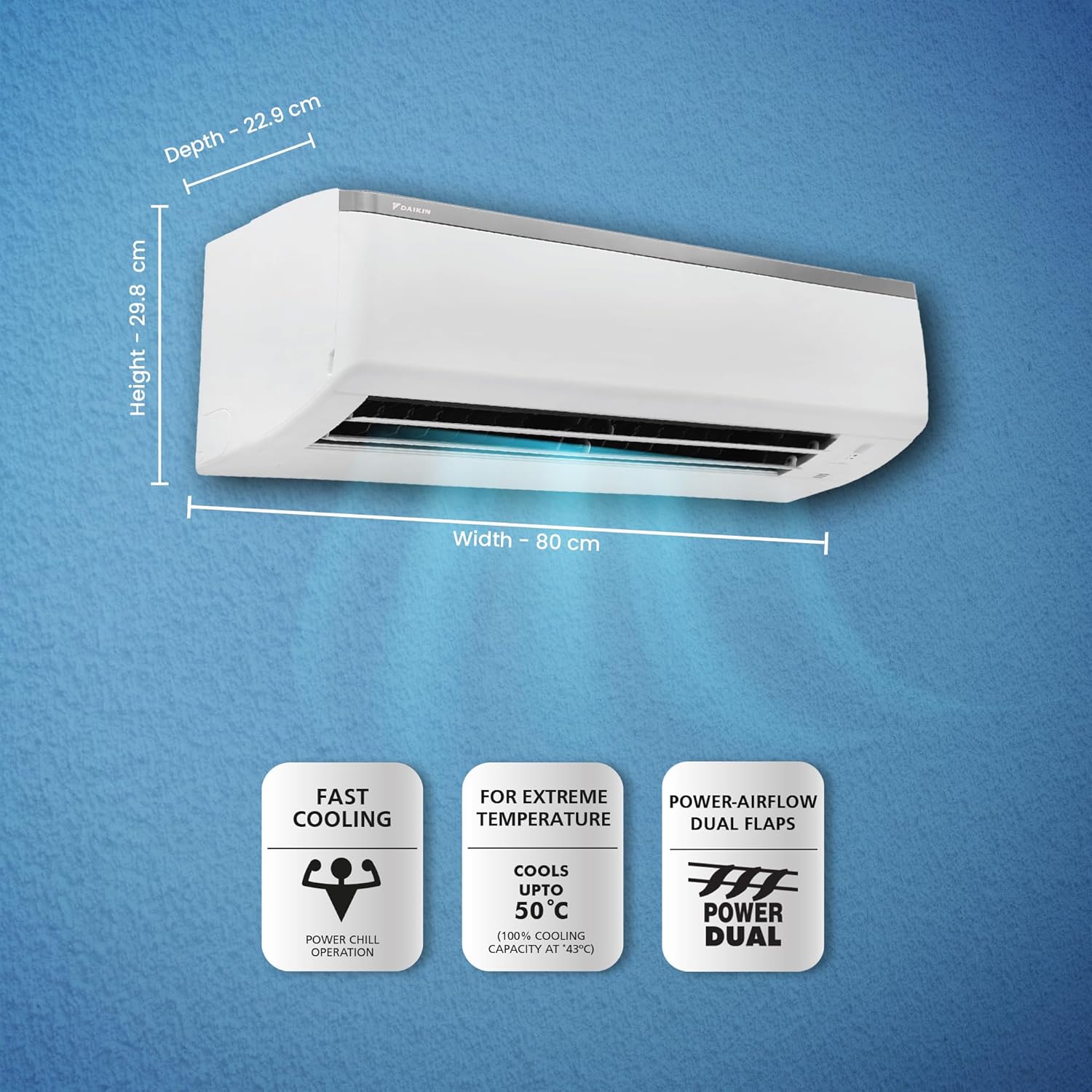

| Dimensions (H x W x D) | 298 x 800 x 229 |
| Machine Weight (Kg) | 9.5 |
| Airflow rate (Feet³/min (Cfm)) | 473 |
| Airflow rate (m³/min (Cmm)) | 13.4 |
| Moisture Removal (Liters/Hour) | 0.5 |
| Sound Levels (H / M / L) | 43 / 37 / 32 |
| Casing Colour | Ivory White |
| Compressor Type | Rotary Compressor |
| Refrigerant | R-32 |

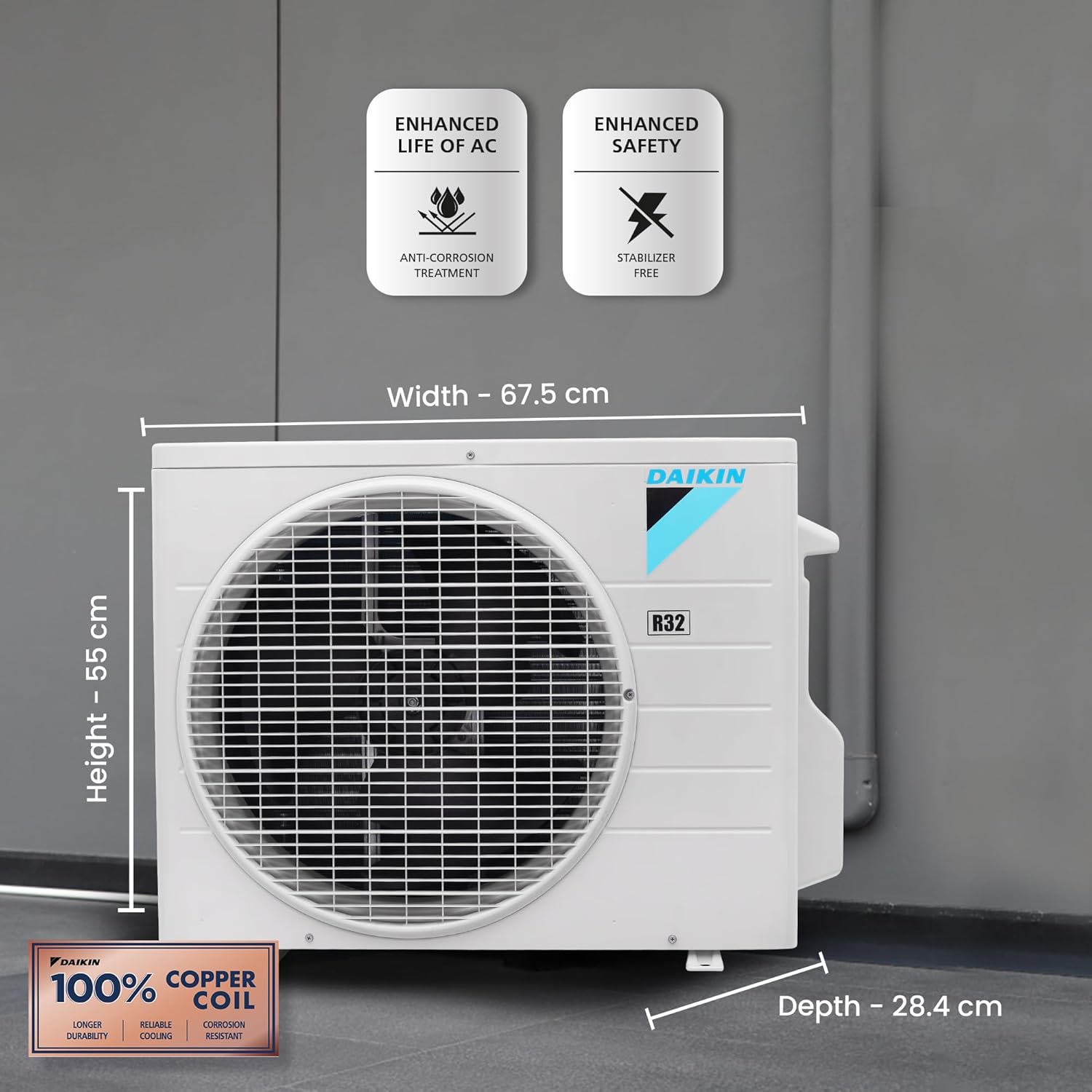

| Dimensions (H x W x D) (mm) | 550 x 675 x 284 |
| Machine Weight (Kg) | 26.5 |
| Breaker size (A) | 15 |
| Piping Length - Charge-less (m) | 10 |
| Piping Length - Max. length (m) | 20 |
| Piping Length - Max. height (m) | 15 |
| Piping Connection (Gas/Liquid) (mm (inch)) | ∅9.5/∅6.4 (3/8" ; 1/4") |
| Operating Ambient Temperature Range Cooling (Min ~ Max) (°CDB) | 19.4° ~ 50° |
